D8: The first 8K-class Native Video Scaler

Create a visual experience.

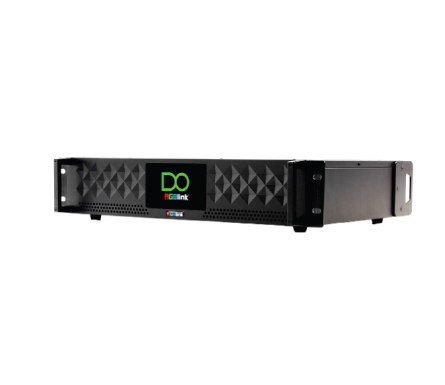

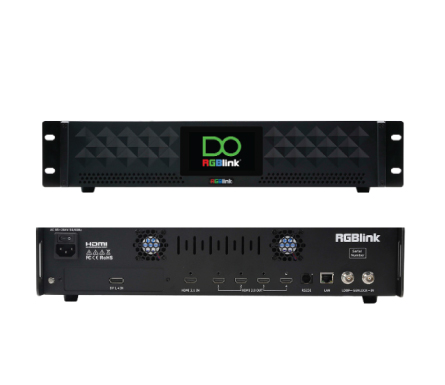

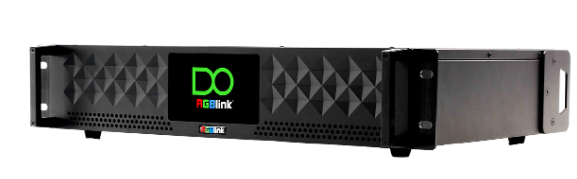

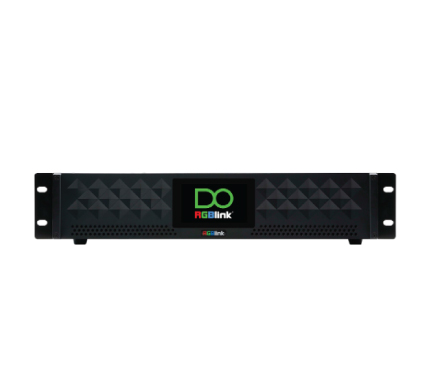

The D8 is equipped with a 4-inch LCD touch screen, which optimizes the overall front panel aesthetic design and optimizes the user experience. No connection is required. The front panel is controlled by touch, and the touch control is used to switch modes, and view the input and output status in real time.

Unpacking and Inspection

Before opening D8 shipping box, inspect it for damage. If you find any damage, notify the shipping carrier
immediately for all claims adjustments. As you open the box, compare its contents against the packing
slip. If you find any shortages, contact your sales representative.
Once you have removed all the components from their packaging and checked that all the listed
components are present, visually inspect the system to ensure there was no damage during shipping. If
there is damage, notify the shipping carrier immediately for all claims adjustments.

Site Preparation

The environment in which you install your D8 should be clean, properly lit, free from static, and have
adequate power, ventilation, and space for all components.The device should be far away from drips,so
objects such as vases filled with liquid should not be placed on the device.

SPECIFICATION

KEY FEATURES

0.0/5 rating (0 votes)

Processing system for mixed signal matrix

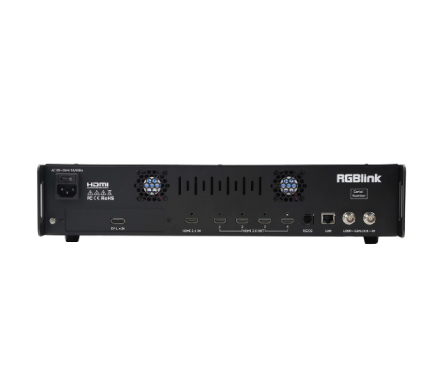

Connectors	Input	Standard HDMI2.1		1xHDMI-A
	Output	Standard	HDMI 2.0	4×HDMI-A
	Control	Standard	HDMI	1×HDMI-A
	Communication	Standard	Genlock In/Loop	2×BNC
			LAN	1×RJ45
			RS232	1×RJ11
	Power			1×DC Jack
Performance	Input Resolution	Select from below or configure customized
		HDMI 2.1
		SMPTE	720p@50/60 \| 1080p@30/50/60 \| 2160p@30/60 \| 4320p@30/60>
		VESA	1024×768@60 \| 1280×720@60 \| 1280×768@60 \| 1280×800@60 \| 1280×1024@60 \| 1360×768@60 \| 1440×900@60 \|
			1920×1200@60 \| 3840×570@60 \| 2560×1600@60/120 \| 3840×2160@30/60 \| 3840×2400@60 \| 4096×2160@60 \| 7680×4320@60>
	Output Resolution	Select from below or configure customized
		HDMI 2.0
		SMPTE	720p@50/60 \| 1080p@30/50/60 \| 2160p@30/60>
		VESA	1024×768@60 \| 1280×720@60 \| 1280×768@60 \| 1280×800@60 \| 1280×1024@60 \| 1360×768@60 \| 1440×900@60 \|
			1920×1200@60 \| 3840×570@60 \| 2560×1600@60/120 \| 3840×2160@30/60>
	Supported Standard	HDMI	2.1
Power	Input Voltage	AC 100V-240V, 50/60Hz
Environment	Temperature	0℃ ~ 70℃
Environment	Humidity	15% ~ 85%
Physical	Device Weight	7.2kg
	Packaged Weight	8.5kg
	Device Dimension	484mm×378mm×88.9mm
	Packaged Dimension	530mm×530mm×130mm
