DROP6i: 6.5" 2-Way Pendant Loudspeaker
High-Performance Loudspeakers
DROP6i is a 2‑way full‑range 6.5” pendant loudspeaker delivering 75W @ 8Ω, designed with a sleek, discreet aesthetic. It features a 70/100V line transformer with selectable 60/30/15/7.5W power taps and is available in both high‑ and low‑impedance configurations.
 |
 |
 |
Features
- Two-way full-range pendant loudspeaker.
- 75 W RMS @ 8 Ω.

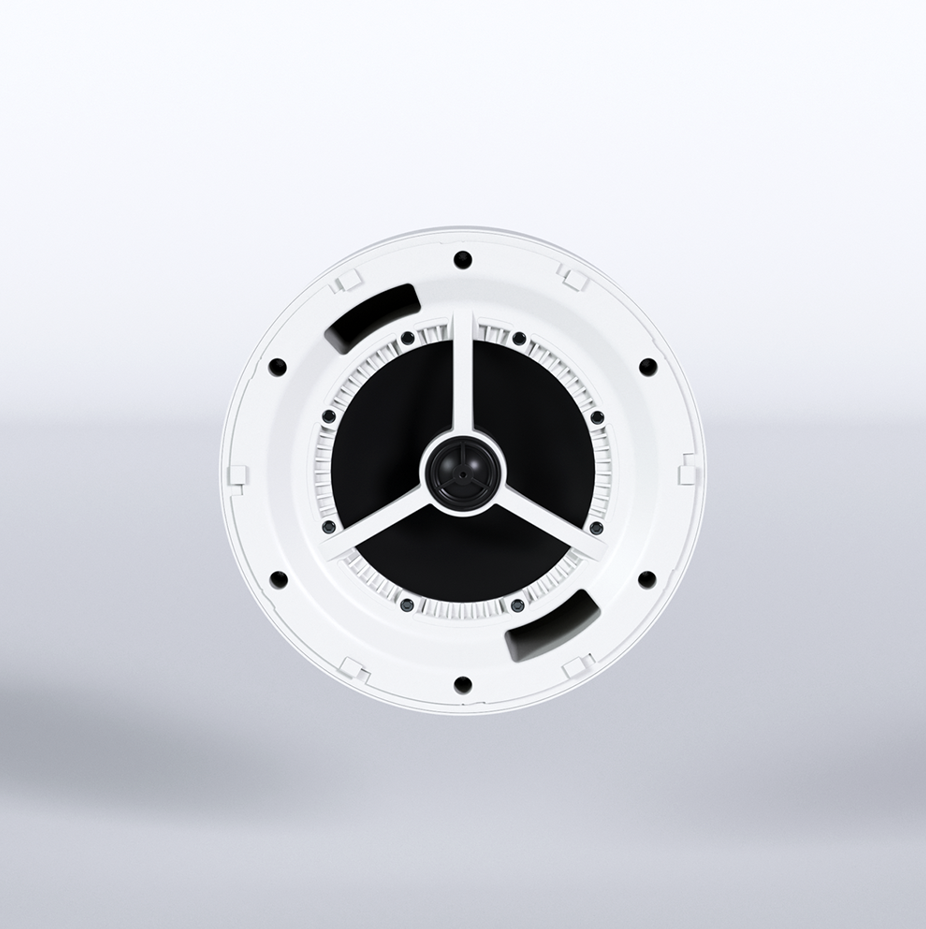

- 6.5" woofer / 1" Silk Dome tweeter.
- Compatible for use in high impedance (70V or 100V line) and low impedance (8Ω).
- Power selector: 4 options of 60W/30W/15W/7.5W in high impedance or one 75W option in low impedance.
- IP53 rated.
- ABS reinforced with fibreglass.

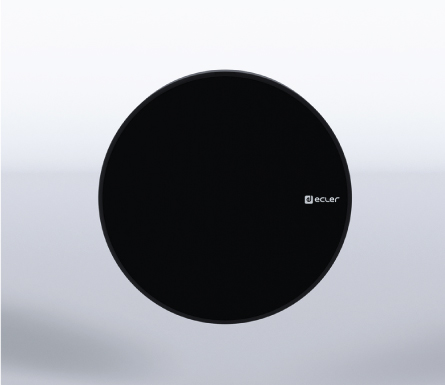

- Paintable grill and speaker (white).

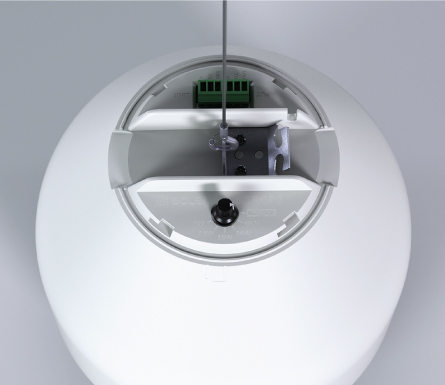

- INPUT/LINK double connector, Euroblock type.

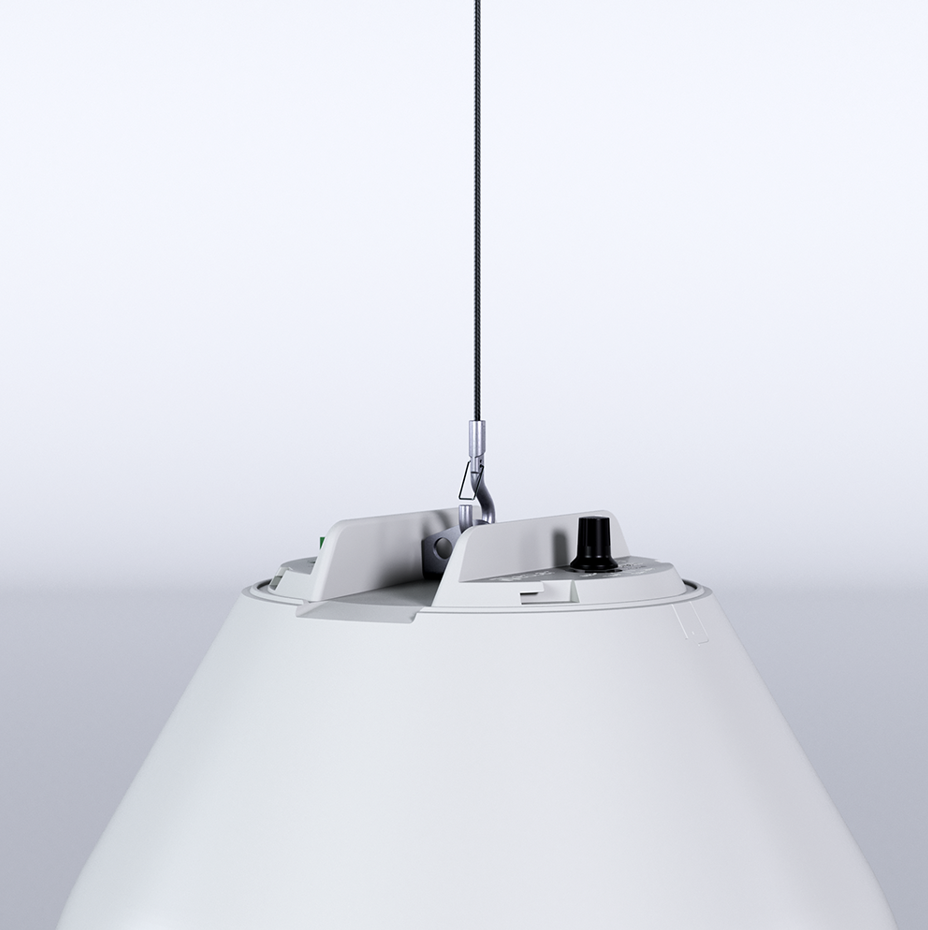

- Cable length: 5m (includes 2 height adjustable steel cords).
- Available in white (RAL9003) and black (RAL9005).
- EASE files available.
Applications
Retail Corporate Leisure Hospitality
USER MANUAL: Ecler DROP6i User Manual EN.pdf
