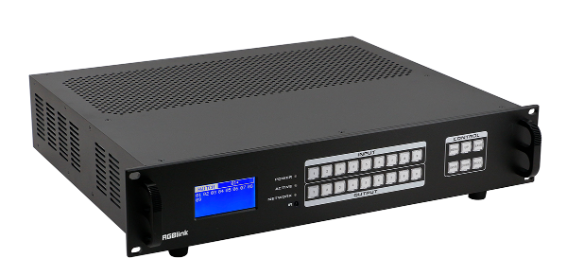

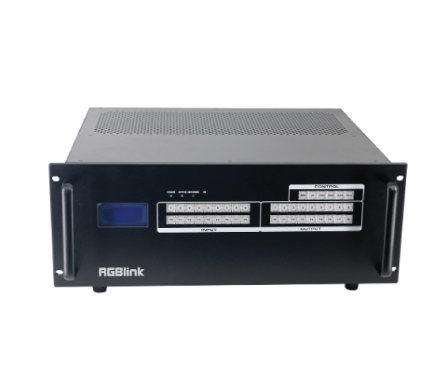

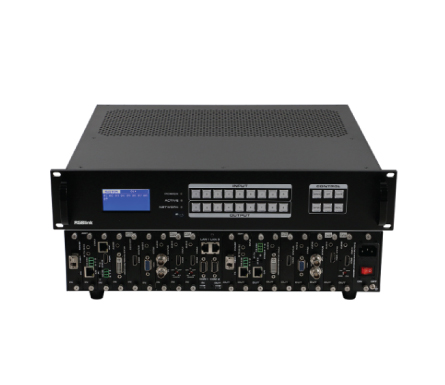

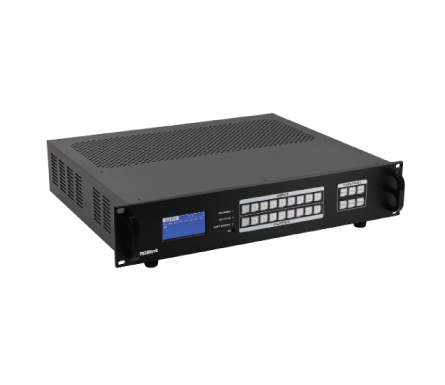

FLEX MINI Modular Matrix Switcher
This is a modular matrix switcher with de-embedded, transmission, distribution and switch functions for audio. 3 models optional to meet your requirements in the conferencing, radio & television project, multimedia conferencing hall, large screen display project, television teaching, command control center and so on. All the input and output cards are using 1-card 1-port, the signals are including the DVI, HDMI, DP, HDBaseT, 3G-SDI. Users are able to have mixed signals inputs and mixed signals outputs.
Key Features
- 1-card 1-port fully modular architecture
-
Seamless switching
-
Support RGB/YUV4:4:4,4K60 Input & Output
-
Support EDID, HDCP2.2
-
Centralized cross-platform controls up to 254 devices
-
Support dual network and dual backup
-
Support dual power modules and backup
- Control via crystal button, Web, APP and RS232
- Support signal switch among CVBS/YPbPr/HDMI/DP/DVI/SDI/HDBaseT
- Support auto-storing when power off and auto-restoring data when booting
- Save and load up to 40 presets
- Embedded audio with audio embedding and de-embedding (interface: 3.5mm audio jack)

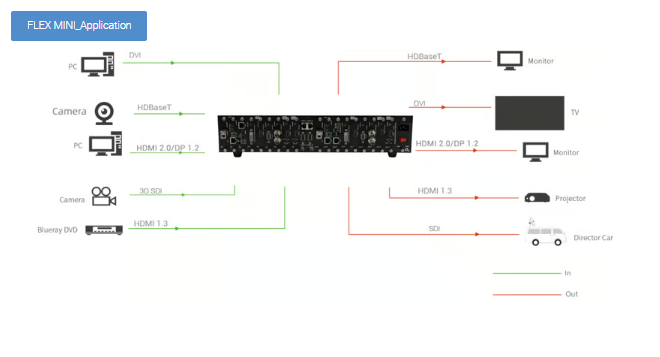

Diagram
|
|
|||||||
| FLEX MINI | Specification | EN | V1.6 | 7/11/2024 12:00:00 AM | 731KB |  |
|
|
Documents
|
|||||||
| FLEX MINI | User Manual | EN | V1.8 | 11/4/2024 12:00:00 AM | 2.0MB | |
|
