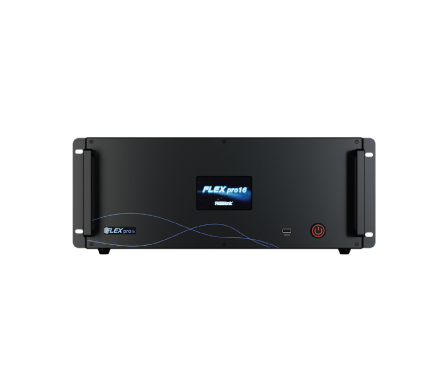

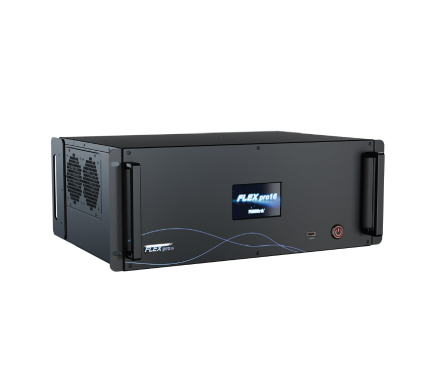

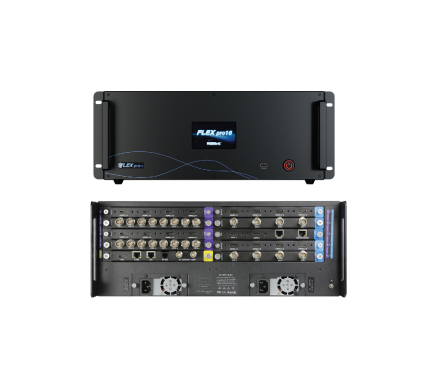

FLEXpro16: Broadcast-quality Hybrid Multiviewer Switcher
FLEXpro16 is a high-performance video image processing system with pure hardware FPGA processing architecture. The whole machine adopts modular configuration, plug-in card structure, can be flexibly configured according to user needs, input and output cards to meet the needs of a variety of video applications on site.

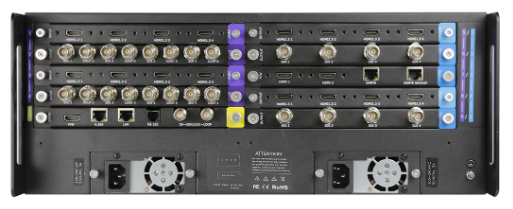

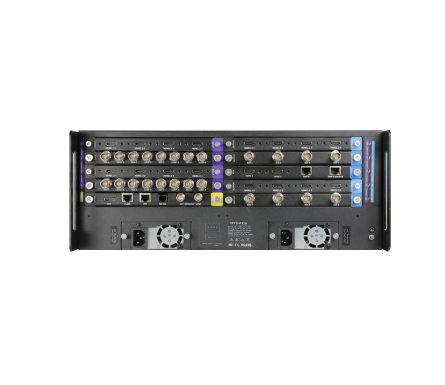

Support input and output card hot-swapping, dual power supply hot backup, stable performance, is a set of multiple mixed-signal access, arbitrary distribution, seamless switching, multi-screen processing and other functions in one broadcast-grade multifunctional video conferencing and control all-in-one machine, can be widely used in government agencies, enterprises, public institutions, the military and other organizations of the major meetings, command and control, exhibitions and other fields.
- Cross-module horizontal splicing (same-module horizontal splicing not supported)
- Each output module supports 8-layer cross-screen synchronous display
- Connected to a programmable panel via Ethernet or serial port for remote control
- 4" HD touch screen for showing input& output status and menu operation
- Dual Network Communication: one for local communication (LAN) and the other for remote control and monitoring (H.265)
- 12 bit processing for HDMI 1.3 input and output, support RGB 4:4:4 color space
- De-interlacing processing, i signal output supported
- Seamless switch between inputs and outputs
- Static and Dynamic OSD titles
- Support monitoring of up to 16 Dante audio input channels
- Dual HD multi-view output ports.Simultaneous monitoring up to 16 input/output sources
- Synchronous switch from single input signal to multiple output channels

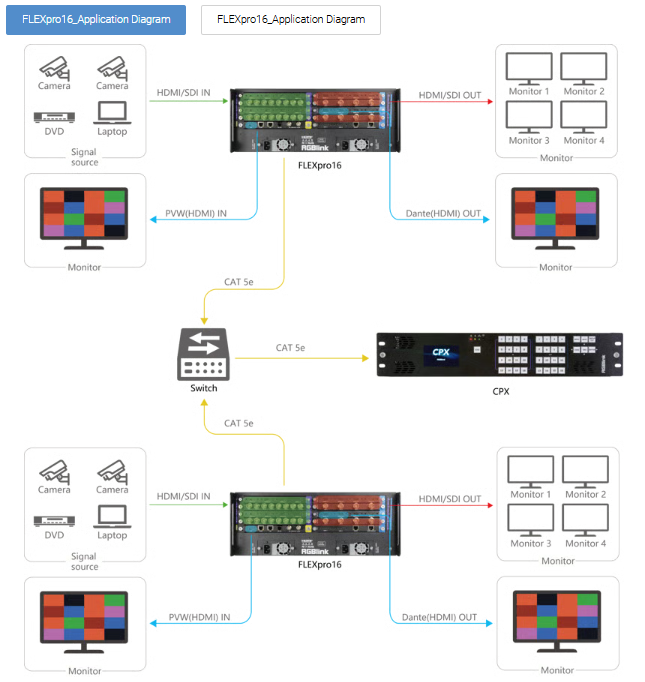

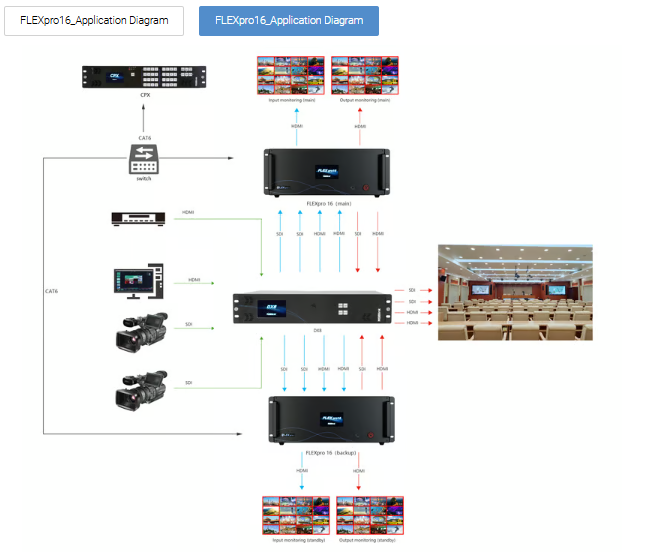

Diagram
 |
 |
|
|
|||||||
| FLEXpro16 | Specification | EN | V1.1 | 4/29/2025 12:00:00 AM | 1.0MB |  |
|
| FLEXpro16 | Product Brochure | EN | V1.1 | 4/30/2025 12:00:00 AM | 2.0MB | |
|
| CPX | Specification | EN | V1.1 | 4/2/2024 12:00:00 AM | 507KB | |
|
