Kramer Cable quick Reference Guide 2025

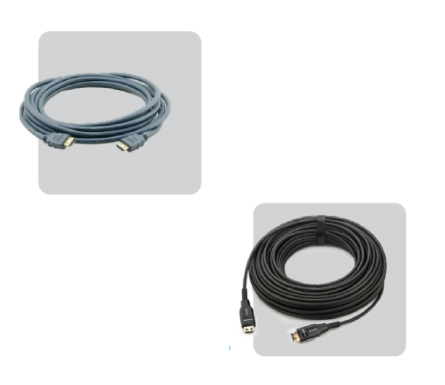

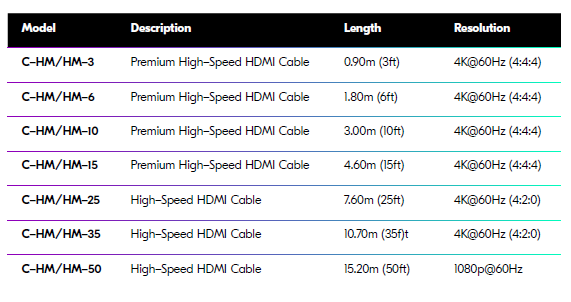

C-HM/HM Premium High-Speed HDMI Cable Kramer’s C-HM/HM HDMI cable delivers uncompressed digital signal transmission for high-definition AV setups, ensuring seamless connectivity between DVD players, set-top boxes, and audio/video monitors such as LCD and OLED displays.

•  Max. Resolution – Supports 4K@60Hz (4:4:4) for ultra-clear, high-resolution visuals.
•  Enhanced AV Performance – Fully supports Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, and CEC, ensuring rich media experiences.
•  High-Quality Connectors – 24K gold-plated connectors resist corrosion and maintain optimal conductivity for long-term performance.
•  K-Lock™ Pull-Resistant Connectors – Provides 15 lbs of restraining force, preventing accidental disconnections in professional AV setups.
•  Premium Certified Performance – HDMI-certified for cables up to 15ft, ensuring compliance with industry standards.

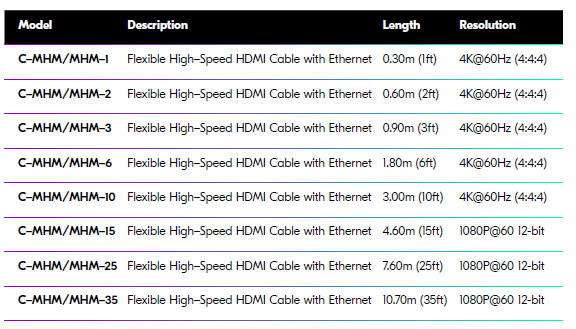

C-MHM/MHM Flexible High-Speed HDMI Cable with Ethernet Kramer’s C-MHM/MHM HDMI cable is designed for professional AV applications requiring high-speed, ultra-flexible connectivity.

• Max. Resolution – Delivers 4K@60Hz>; (4:4:4) for superior image quality.
• Enhanced AV Performance – Fully supports Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, and CEC for high-quality multimedia experiences.
• K-Lock™ Pull-Resistant Connectors – Provides 15 lbs of restraining force, ensuring a secure, non-slip connection.
• Flexible & Durable Design – Ultra-flexible construction allows for easy routing and installation in tight spaces.
• Color Options – Available in gray and white for visual adaptability in various setups.

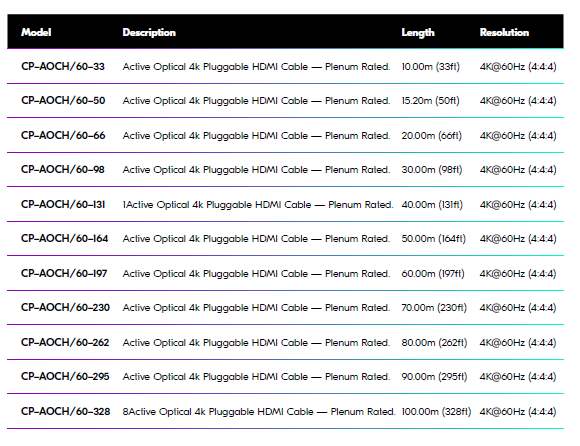

CP-AOCH/60 Active Optical 4K Pluggable HDMI Cable (Plenum Rated) Kramer’s CP-AOCH/60 HDMI cable is an active optical HDMI cable designed for long-distance 4K signal transmission in professional AV environments. Supporting 4K@60Hz (4:4:4) resolution over distances up to 100m (328ft), it ensures zero signal attenuation, full HDCP 2.2, HDR, and EDID support, making it ideal for critical AV installations.

• Optimized for Long-Distance 4K AV – Transmits 4K@60Hz (4:4:4) with a high data transfer rate of up to 18Gbps.
• Embedded Audio — PCM 8–channel, Dolby Digital True HD and DTS–HD Master Audio
• Removable, High-Quality Connectors – Features removable, 24K gold–plated,corrosion–resistant HDMI connectors with pull-through micro-HDMI capsules for easy routing in tight spaces; optional DVI connectors available separately.
• Slim & Flexible Design – Thin construction of 3.4 mm (0.13’’) diameter, with a 6mm bending radius, reducing strain in complex installations.
• Minimized Interference – Hybrid fiber structure reduces EMI and RFI interference,ensuring superior signal integrity.
• Durable & Compliant – Plenum-rated, low smoke & halogen-free jacket, and RoHS 2011/65/EU compliant for safe installation in commercial environments.

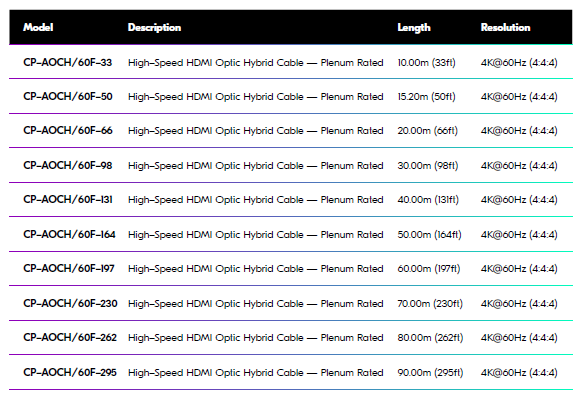

CP-AOCH/60F High-Speed HDMI Active Optical Hybrid Cable (Plenum Rated) Kramer’s CP-AOCH/60F HDMI cable is an innovative, active optical HDMI cable, designed for long-distance 4K signal transmission in professional AV environments. Supporting 4K@60Hz (4:4:4) at distances up to 90m (295ft) with no signal attenuation, it ensures seamless EDID and HDCP support, making it ideal for critical AV installations.

• Optimized for Long-Distance 4K AV – Delivers 4K@60Hz (4:4:4) with a high data transfer rate of up to 18Gbps.
• Enhanced AV Compatibility – Fully supports Dolby Digital TrueHD, DTS-HD Master Audio, HDCP 2.2/1.4, HDR, ARC, EDID, and CEC for seamless integration.
• Slim & Flexible Design – Thin (4.5mm diameter), lightweight construction, ideal for installations in tight spaces and conduit routing.
• K-Lock™ Secure Connectors – 24K gold-plated, corrosion-resistant connectors ensure stable and reliable performance.
• Minimized Interference – Hybrid fiber structure reduces EMI and RFI interference, maintaining signal integrity.
• No External Power Required – Draws power directly from the HDMI source for simplified installation.
• Durable & Compliant – Plenum-rated jacket for safe commercial installation,RoHS 2011/65/EU, CE, and FCC compliant.

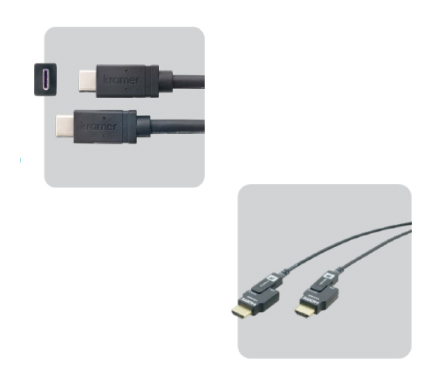

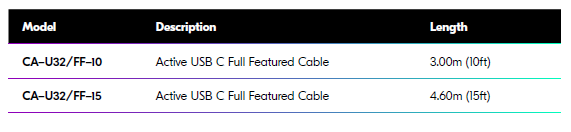

CA-U32/FF USB-C 3.2 Gen-2 Active Cable with K-Lock™ Kramer’s CA-U32/FF USB-C Active Cable delivers ultra-fast 10Gbps data transfer, 4K@60Hz video transmission, and 100W power delivery, making it the ideal solution for high-performance connectivity across multiple devices. Designed with K-Lock™ secure connectors, it ensures a stable, non-slip connection for mission-critical applications.

• High-Speed Data & Video – Supports 4K@60Hz video and USB 3.2 Gen-2 data transfer up to 10Gbps.
• Powerful Charging Capabilities – Delivers 100W power output (5A, 20V) for charging laptops, tablets, and mobile devices.
• Secure & Reversible USB-C Connector – Features integrated K-Lock™ mechanism for a secure connection, eliminating accidental disconnections.
• Plug & Play Compatibility – Works seamlessly with PC, Mac, and mobile devices, supporting monitors, webcams, printers, and more.
• Durable, High-Quality Construction – Shielded twisted pair (STP) design reduces electromagnetic interference for stable performance.
• USB Backward Compatibility – Fully supports USB 1.0, 1.1, 2.0, and 3.0 devices.
• Certified & Compliant – RoHS & REACH compliant, ensuring safety and environmental compliance.

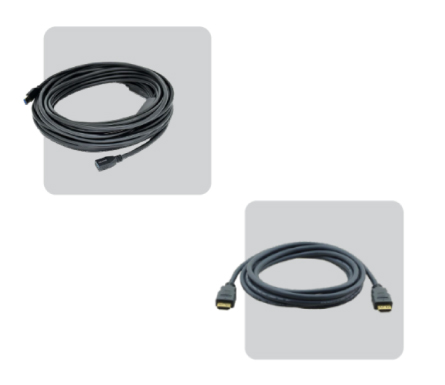

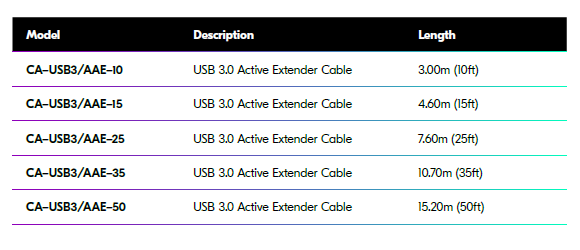

CA-USB3/AAE USB 3.0 Active Extender Cable Kramer’s CA-USB3/AAE active extender cable extends USB 3.0 signals up to 15m (50ft) without performance degradation. Built with active electronics to prevent signal loss, it provides stable, high-speed data transmission for USB peripherals such as cameras, printers, webcams, keyboards, and mice—all without requiring an external power source.

•  Extended USB Connectivity – Overcomes the 2m (6ft) USB cable limitation,enabling reliable USB 3.0 extension up to 15m (50ft).
•  True Plug & Play – No drivers or external power required; powered directly from the USB source device.
•  High-Speed Data Transfer – USB 3.0 SuperSpeed (5Gbps) compliant for seamless high-bandwidth performance.
•  Built for Signal Integrity – Active electronics buffer incoming and outgoing signals, ensuring stable data transmission.
•  Durable, High-Quality Construction – Engineered with 2 pair 24AWG, 1 pair 26AWG, 2 wires 22AWG, and 2 drain wires 24AWG for robust performance.
•  Varied Lengths for Flexible Installations – Available in sizes from 4.6m to 15m (15ft to 50ft).
• CM–c(ETL) Rated – Designed for professional installations.

Download the full Kramer Cable quick Reference Guide 2025
