Kramer KDS-DEC7 highly–scalable, AVoIP Decoder
- Outstanding end–user experience
- Ideal for large–scale deployments
- Robust security
- Simple planning and rollout
- Managed by KDS-7-MNGR

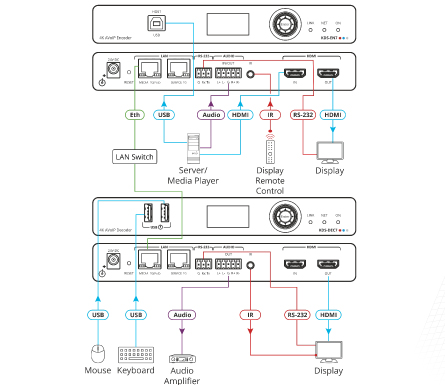

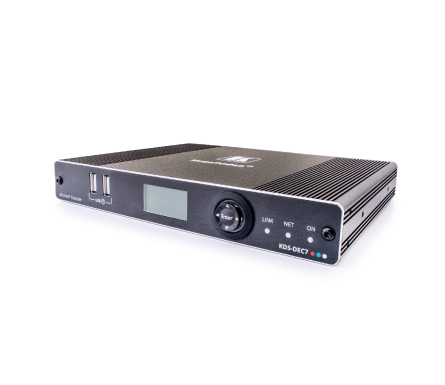

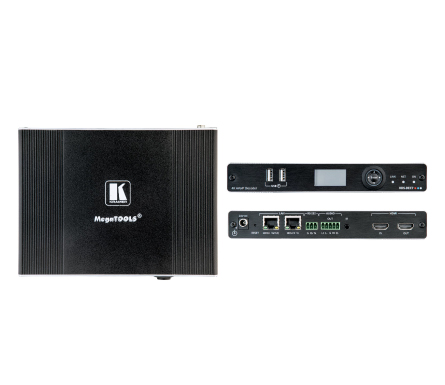

KDS−DEC7 decoder is an advanced receiver for streaming 4K@60Hz (4:2:0) video signals via Ethernet over copper cable. It decodes streams over an IP network to HDMI output, and transmit the USB, IR, RS232, or CEC signal over IP network.
Outstanding end–user experience
Rich set of inputs and interfaces
Easy–to–use KM/KVM — Searchable OSD Menu for KM and fully configurable KVM roaming
Large scale video wall — up to 16x16
Instantaneous switching time — 1 second
Ideal for large–scale deployments
Highly scalable — 999 channels build in support
State of the art management device
Rich set of management capabilities — Standard P3K Open API , LCD screen for configuration
Robust security
Enterprise IT–grade security — 802.1x and HTTPS/TLS
Security certification — OWASP Top 10 certificate
Separate ETH ports for optimal security and experience
New HW architecture that enables robust FW update
Simple planning and rollout
Cost–effective from day one
Full product range for any site, any application
Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, KDS–USB2, etc.
PoE Support
Using PoE switch — up to 13W consumption
Alternative sources/destinations
HDMI Loop–Through on Encoder and HDMI Input on Decoder
Analog Audio
Embedding and De–embedding
Control gateway
Through P3K control/communicate with IR, RS232, or CEC to the connected devices

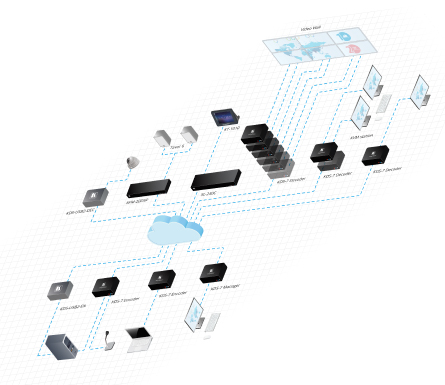

APPLICATIONS
- For real–time essential installations such as command and control rooms
- For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
- AV distribution systems with one or more sources and many displays in schools, universities, and public venues
- For AV installations where low latency KM/KVM capabilities are required
