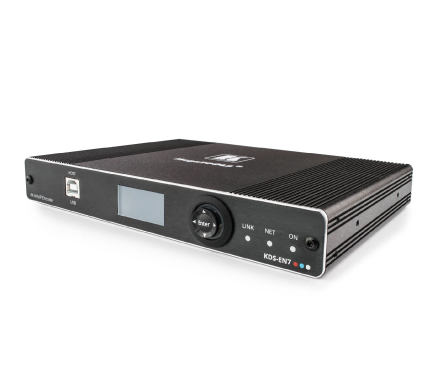

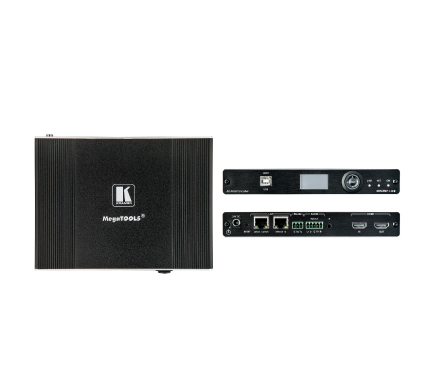

High–performance, highly–scalable, AVoIP Encoder for 4K60 4:2:0, HDR10 over 1G network

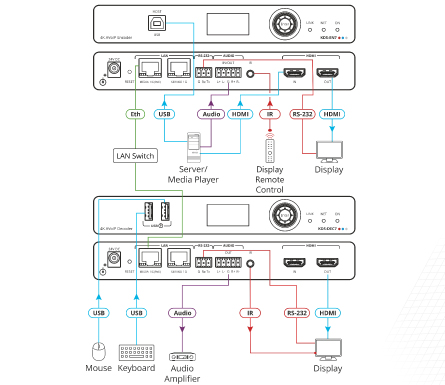

KDS−EN7 encoder is an advanced transmitter for streaming 4K@60Hz (4:2:0) video signals via Ethernet over copper cable. It encodes and streams over an IP network from HDMI input, and transmits the USB, IR, RS232, or CEC signal over IP network.

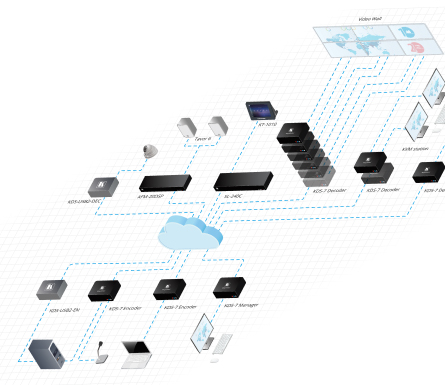

Outstanding end–user experience Rich set of inputs and interfacesEasy–to–use KM/KVM — Searchable OSD Menu for KM and fully configurable KVM roamingLarge scale video wall — up to 16x16Instantaneous switching time — 1 secondIdeal for large–scale deployments Highly scalable — 999 channels build in supportState of the art management device Rich set of management capabilities — Standard P3K Open API , LCD screen for configurationRobust security Enterprise IT–grade security — 802.1x and HTTPS/TLSSecurity certification — OWASP Top 10 certificateSeparate ETH ports for optimal security and experienceNew HW architecture that enables robust FW updateSimple planning and rollout: Cost–effective from day oneFull product range for any site, any applicationPlug–and–play with Netgear M4250 AVoIP switches, Kramer Control, KDS–USB2, etc.PoE Support Using PoE switch — up to 13W consumptionAlternative sources/destinations HDMI Loop–Through on Encoder and HDMI Input on DecoderAnalog Audio Embedding and De–embeddingControl gateway
Through P3K control/communicate with IR, RS232, or CEC to the connected devices
