mini v3: mini Video Switcher
Overview
In July 2025, RGBlink officially launch and deliver the third-generation mini Video Switcher. Building on the legacy of the last 2 generation, the mini achieves another technological breakthrough. It is the streaming industry's first video switcher offering user-customizable features, allowing users to unlock full capabilities through either a monthly subscribe or a lifetime purchase, tailored to their individual demanding in need.
The third-generation mini retains its compact design and all-black casing while introducing wide a range of optional features, including USB-A recording, UVC audio-video capture, live streaming via TAO Cloud, and NDI encoding/decoding. These enhancements empower users to effortlessly handle event live streaming and content creation, meeting demands for recording and post-production. Additionally, the 2-inch full-color TFT display has been upgraded to a touchscreen, featuring an icon-based menu interface. Users can now directly monitor multiple input sources, unlocking the benefits of intuitive touch control.
Key Features
- 4 HDMI inputs, 2 HDMI output
- web APP & open APl for remote control
- HDMI output can be set to 6-window Preview, Program or Inputs 1~4
- 2-inch TFT full color touchscreen built in for signal monitoring and menu operation
- Support MIC and LINE audio input, multi-channel mix audio
- Image scaling & cropping
- PIP function including PBP for layout setting
- USB 2.0 recording function, supporting exFAT and FAT32 formats
- T-Bar seamless transition including CUT | FADE
- 15 transition effects
- LOGO overlay
- Air cooling design to sucure 24/7 stable operation

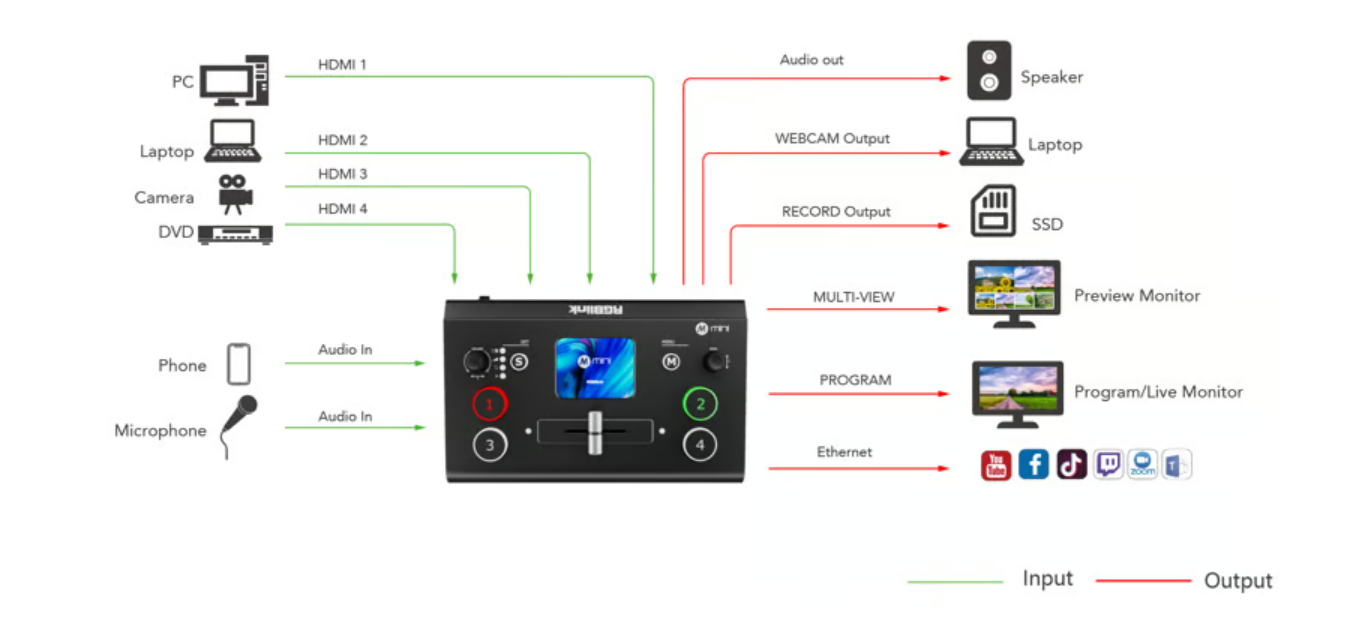

Diagram
| mini | Product Brochure | EN | V1.2 | 8/4/2025 12:00:00 AM | 1.0MB |  |
|
| mini | Specification | EN | V1.0 | 7/28/2025 12:00:00 AM | 731KB | |
