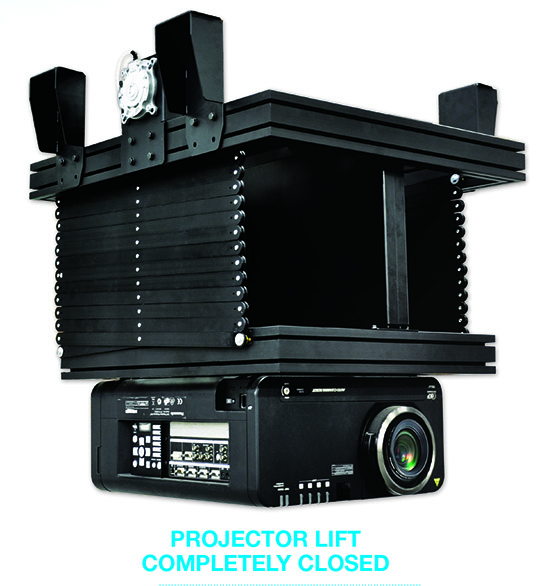

PROJECTOR LIFT SI-H 500
The heavy projector lift series SI-H is a very strong and reliable brand new range of lifts specifically developed for large venue applications where large projectors need to be moved.
The SI-H 500 lift is equipped with heavy-duty but silent motor which assures a fast and stable up-down movement of the projector. Furthermore, the motor is provided with an RF remote control and offers the possibility to set three motor limit stops: an upper stop limit, an intermediate one and a down one.
The intermediate stop can be set at the desired height for PROJECTION MODE, whereas the down one can be adjusted up to 500 cm. stroke to be used as SERVICE MODE position.
Optional: Remote control interface unit for control room systems.
Also a SAFETY DEVICE is built-in in order to offer maximum security in case of any failure of the mechanism. The projector anchoring frame movement is controlled by two strong steel cables that are certified for a maximum load of 350 kg each.
A unique and professional CABLE MANAGEMENT SYSTEM is supplied integrated in the product. This allows to connect safely and tidily the projector with the power and signal cables. This projector lift series are developed in order to support projectors up to 70 kg. The maximum outside dimension of the projector that can be fixed under the lift has to be less than the size of the upper frame of the lift. Moreover, the anchoring points of the projector have to be within a maximum width of 54 cm and a maximum depth of 58 cm.
TECHNICAL SPECIFICATIONS
- POWER SUPPLY: 220-230 V - 50 HZ
- MAXIMUM CONSUMPTION: 265 W
- TORQUE: 60 Nm
- MOTOR SPEED: 11 Rpm
- ROLL UP SPEED: 19 sec/metre
- ROLL DOWN SPEED: 24 sec/metre
- DIMENSIONS: CLOSED 79,8x70,5x89 (WxHxD in cm)
- MAX DIMENSIONS: OPENED 79,8x570,5x89 (WxHxD in cm)
- MAXIMUM LOAD OF THE PROJECTOR: 70 KG
- NET WEIGHT: 77 KG
