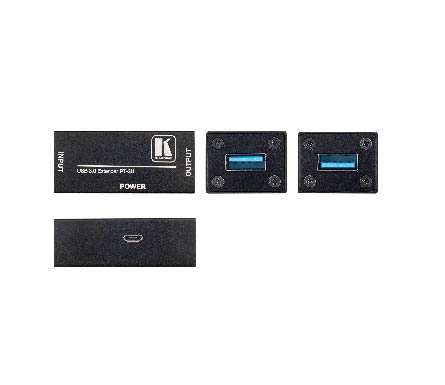

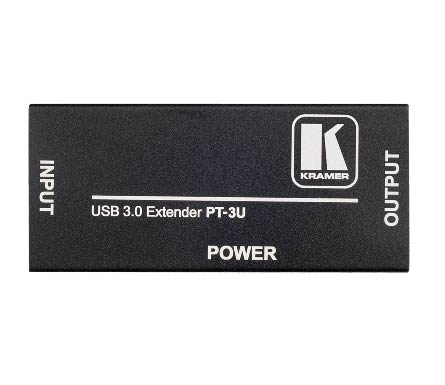

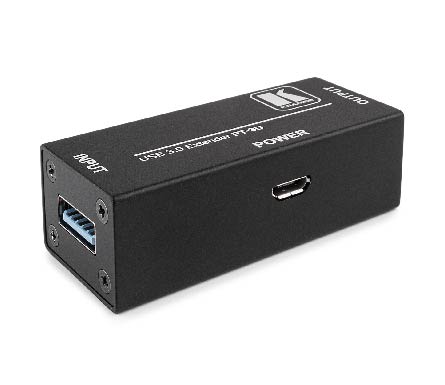

PT-3U USB 3.0 extender

PT−3U is an innovative active USB 3.0 extender that extends the USB cable distance between the host and the device by reclocking and equalizing the USB signal. Placing PT−3U in the transmission path, removes dropout and digital noise (sparkles) in your installation that may result from using long USB cables.

Active USB 3.0 Extender

•  True Plug & Play — No additional driver program is needed.
•  USB 3.0 Super Speed (5Gbps) Standard — Compliant with USB 3.0.
•  Backwards Compatible — USB 2.0, 1.1
•  Optional external power supply.
•  Buffers incoming & outgoing signal.
•  Certifications — CE, FCC, REACH, ROHS.

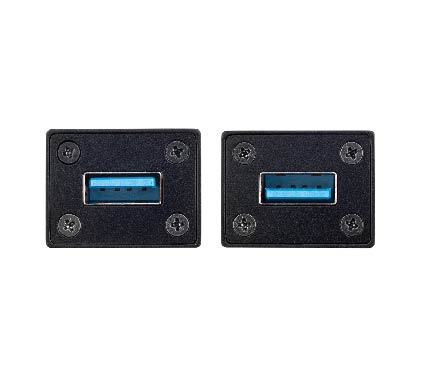

INPUTS

USB 3.0: On a USB type–A female connector

OUTPUTS

USB 3.0: On a USB type–A female connector

GENERAL

Max. Data Rate: 5Gbps
Max. Range: 5Gbps — 4.85m, 3m to PT–3U, 1.85m to Device
Backwards Compatibility: USB 2.0, 1.1
POWER
Consumption: 0.13W

ENVIRONMENTAL CONDITIONS

Operating Temperature: 0–60°C
Operating Humidity: 10%–80%
Storage Temperature: –20–70°C
Storage Humidity: 10%–80%

SHIPPING DIMENSIONS

12.60cm x 8.40cm x 4.10cm (4.96" x 3.31" x 1.61" ) W, D, H

SHIPPING WEIGHT

0.1kg (0.2lbs) approx.
