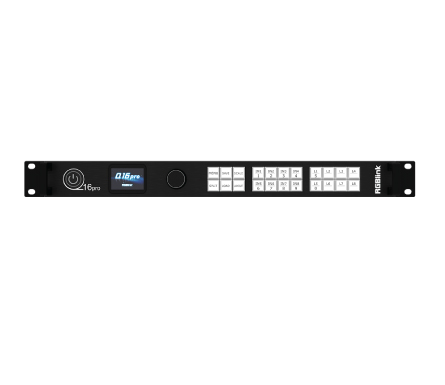

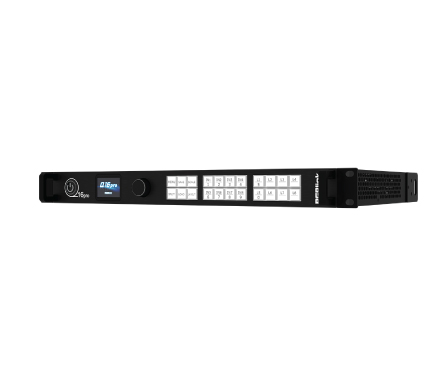

Q16pro Gen2 1U 4K Multi-layer Videowall Splicing Processor

Key Features
  • Modular design with flexible input & output combinations
  • Dual OSD rolling subtitles for 2K output module
  • De-interlacing function
  •  4K@60 input & output
  • Support 8 screens spanning the output port without occupying layers
  • Custom EDID & output resolutions
  • Control via XPOSE 2.0 and RGBlink OpenAPI
  • Connect to the webcam for decoding

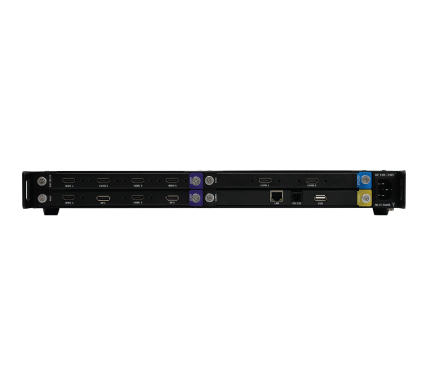

The standard unit comes with 4 HDMI 1.3 outputs and builds with local front control panel and remote control interfaces with RS 232 and Ethernet ports.

Q16pro Gen2 1U is available to be remote controlled by XPOSE or 3rd party APP / controller by open API.

Q16pro Gen2 1U combines rugged design, class-leading video processing and image quality, ultra-low latency, versatile 4K connectivity, livestreaming capabilities, and unmatched ease of use to meet the requirement of the modern commercial display systems application, including live corporate meetings, hybrid events, worship productions, or large-scale LED video wall installations.

Its 8 layers with roaming capacity and layer can cross over each output without layer counting up.

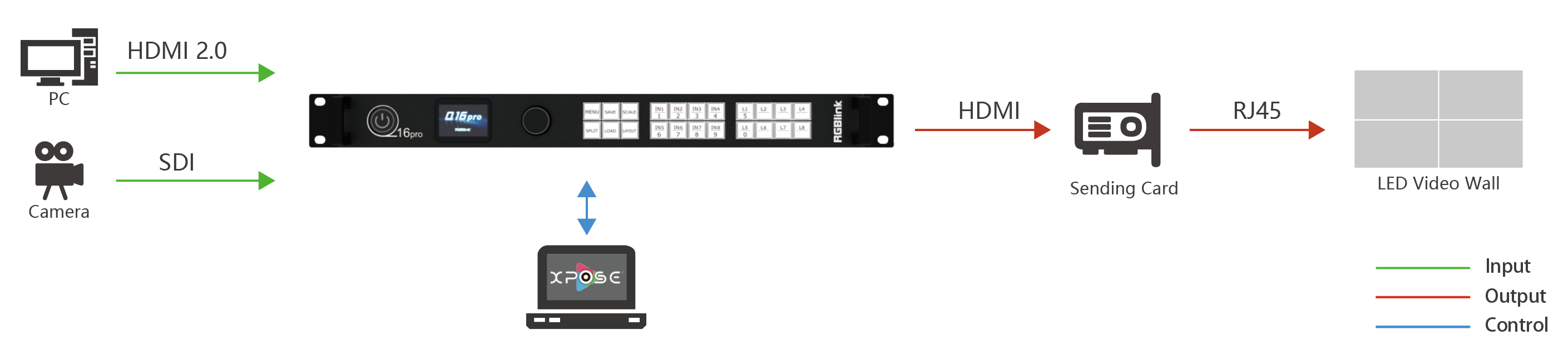

Q16pro Gen2 1U_Connection Diagram

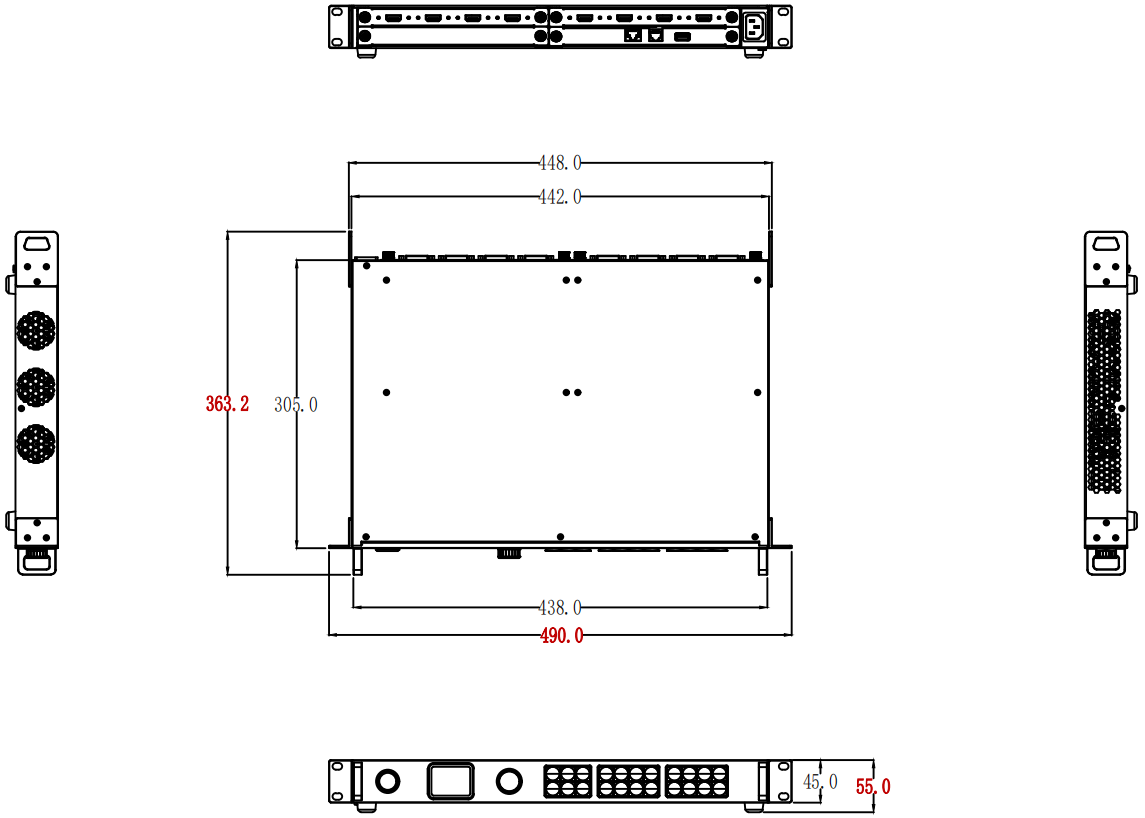

Panel Drawing

PDF version


Q16pro Gen2 1U Product Brochure EN V1.4 9/1/2023 12:00:00 AM 1.0MB PDF
Q16pro Gen2 1U Specification EN V1.4 9/13/2023 12:00:00 AM 1.0MB PDF
Q16pro Gen2 1U User Manual EN V1.3 9/19/2023 12:00:00 AM 2.0MB PDF
Q16pro Gen2 1U Quick Start EN V1.2 8/14/2023 12:00:00 AM 816KB PDF
Q Series RoHS Certificate EN V1.0 3/22/2023 12:00:00 AM 455KB PDF
Q Series FCC Certificate EN V1.0 3/22/2023 12:00:00 AM 445KB PDF
Q Series CE LVD Certificate EN V1.0 3/22/2023 12:00:00 AM 447KB PDF
Q Series CE EMC Certificate EN V1.0 3/22/2023 12:00:00 AM 458KB PDF
XPOSE & TAO APP & Firmware
Q16pro Gen2 1U Firmware EN V1.40 9/1/2023 12:00:00 AM 10.0MB ZIP
