RTBUS-27xl Round Table Connection Bus for Power Socket and Cable Pass–Throughs
- Elegant in–table solution
- Easy to install
- Pop–up Lid

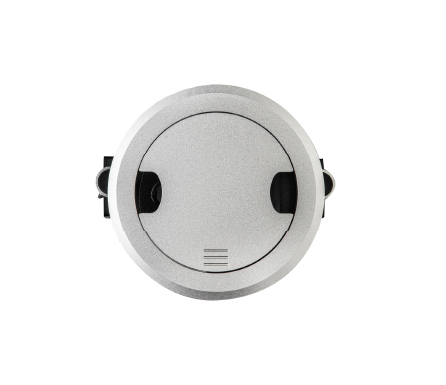

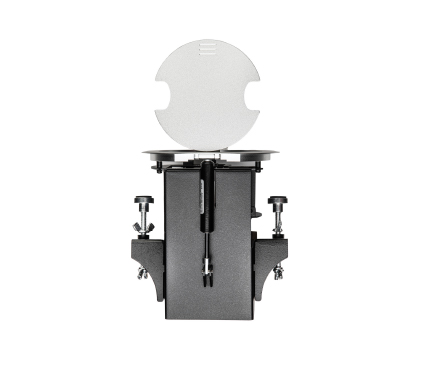

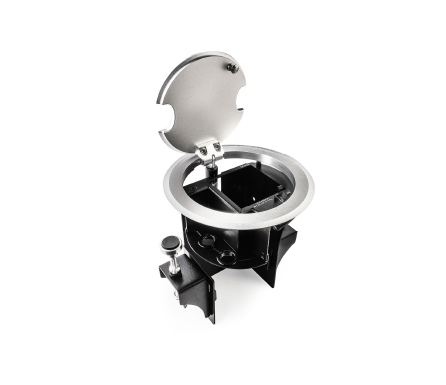

RTBUS 27xl is an elegant furniture−mounted, round connection bus that houses a power socket and two cable pass−throughs. RTBUS 27xl features a pneumatic lid mechanism for lifting and smooth closing and is easily installed into a table or podium top.
NOTE: The power socket, power cord and cables are purchased separately.
- Customizable — Houses any of the following power sockets: USA, UK, Germany (the Europlug), Belgium–France, Switzerland, Italy, Australia, Brazil, Israel, South Africa or “Universal” for use anywhere.

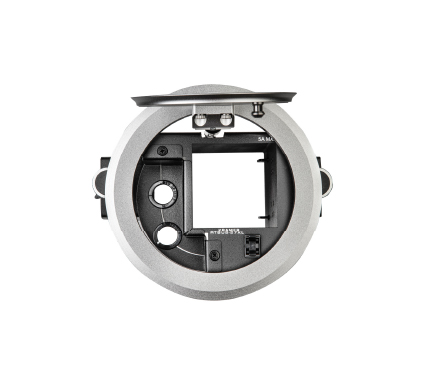

- Hidden Cable Pass–Throughs — Enable closing the lid while keeping two cables hidden and protected under the table surface.
- Cutout Size (Mount Dimension) — 111–114mm (4.37in to 4.49in) diameter.
EXTENDED USB
POWER
- Power rating varies according to the location and the power socket assembly (purchased separately) installed in the tbus, as follows:
- Universal: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
- USA: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
- Germany and EU: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
- Belgium and France: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
- Italy: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
- Australia: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
- Israel: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
- South Africa: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
- Switzerland: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
- England: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
- Brazil: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
- Fuse Rating: T 6.3A 250V
DOCUMENTATION
ENVIRONMENTAL CONDITIONS
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non–condensing
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
- Safety: CE, UL
- Environmental: RoHs, WEEE
