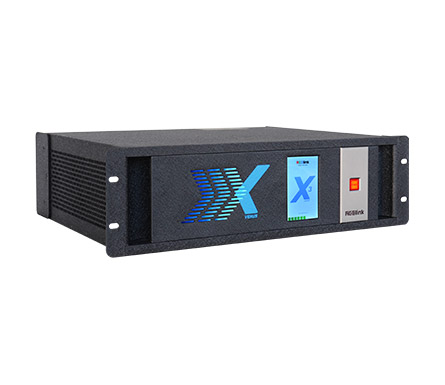

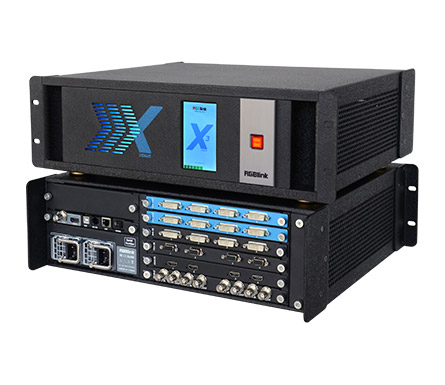

X3 High Performance Universal Processing with 4K input
The X3 universal processors with 4K input are 16x8 scalable video wall control solutions that are dynamically configurable to meet the demands of high-resolution modern displays. The high performance 12bit 4:4:4 processing engine delivers video scaled pixel-to-pixel to multiple outputs that are seamlessly spliced and fully synchronised. A dedicated, high-speed video/graphic bus maintains real-time performance regardless of the signal load or type.

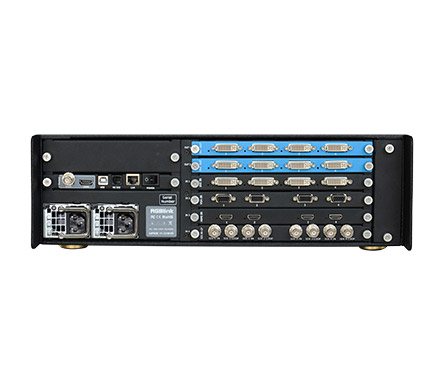

Inputs and outputs are entirely modular, arranged in slots, up to 16 inputs and up to 8 outputs may be fitted. RGBlink SmartSlot modules for input include 4K@60 Digital ;(HDMI 2.0 & DisplayPort 1.2), 12G-SDI, a wide range of 2K module options, as well as inputs for H.264 and USB Media.
While X3 is ideal for video wall continuous display environments, the processor is truly multi-functional with operation modes including video wall, Presentation, Matrix, 3D and more.
KEY FEATURES
- Scalable video wall processing for large video wall with up to 8 displays or more
- Card frame video wall processing system available with 6 slots
- Scalable, field-expandable systems
- High speed, dedicated video/graphic bus delivers real-time performance, each channel up to 4.25Gbps
- Seamless switching between the inputs and display windows or layers
- Multiple cascades to create unlimited real time display resolution
- Local control panel as option
- Upload and display stored images
- Output max supports 16 layers operation, and single output max supports 4 layers
- Input module max supports 4 layers operation
