X7 Large Scale Universal Processing
Bring together entire video display systems with X7, a 32x32 advanced video wall processing/matrix. With up to 32 outputs and a 64 mega pixel capacity, X7 is equally at home delivering fully synchronised video to large video walls, or multiple video walls and creative displays of all types.
The X7 is a true multi-window / multi-layer video wall solution. Connect and configure input sources just once while routing, scaling positioning and presenting across multiple outputs or display areas.

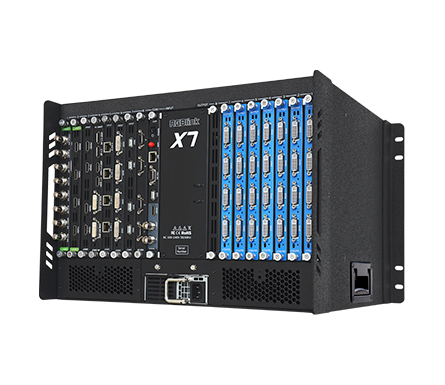

Fully modular inputs & outputs throughout, X7 supports RGBlink SmartSlot™ technology that offers a wide range of native signal choices including 4K options for both input & output, and supporting hot-swap of modules.
Configure the X7 on demand via RGBlink XPOSE software to create independent output pixel spaces for each physical display system regardless of type and arrangement. All processing and setting are on board the hardware X7 platform for high performance low latency video.
KEY FEATURES
- Fully modular design
- Wide range of input signal options
- Fit up to eight 4K@60 outputs
- Fit up to 32 2K ARO advanced rotation outputs
- 64 mega pixel capacity
- Multi-mode operations
- LOGO Capture, DSK and OSD on board
- Genlock In & Digital Reference support
- Support for redundant power supply
- Store and recall presets on board
- Save settings and presets offline
