ABV1 - M290 – Flexible Hinge Section (TRIO)

ABV1 - M290 – Flexible Hinge Section (TRIO)

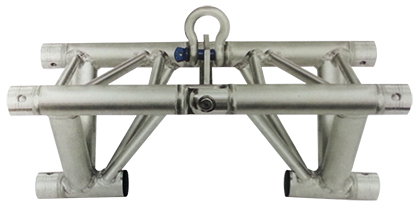

This hanging point is designed to be used with 290 Trio trusses. The suspension point is designed for overhead lifting. This unique solution allows lifting of long spans without the need of a 100% simultaneous lift. As the hanging point hinges, there is no shear and bending at the suspension point. The ideal solution for rigging long spans of truss by means of manual chain blocks. Version for M390 trusses available.
  • Design suitable for overhead lifting as per DGUV 17 / BGV C1
  • Stamped with WLL 1000kg and CE
  • Hinges upwards and downwards
  • Increased truss stability due to lower point of gravity by eccentric pick up point
  • Adapts 3.2 ton shackle
  • Truss “look” maintained

Technical specification

Dimension

Height, ex shackle

273 mm

10,75”



Width

288 mm

11,34”



Working length

600 mm

23,62”



Max. angle upwards

76,5 dgr





Max. angle downwards

115,58 dgr



Weight



7,2 kg

15,87 lbs

WLL



1000kg (DGUV 17 / BGV C1)

2200 lbs

Material



Aluminium alloy EN AW 6082 T6
