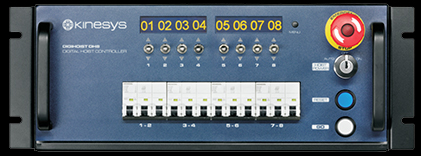

Kinesys DigiHoist: Digital Hoist controller
The DigiHoist platform is a range of intelligent chain hoist controllers incorporating an advanced digital communications link. Options include LibraCELL connectivity for load monitoring as well as encoder and Ethernet connectivity for enhanced positioning control.
At the core of the system is a digital communications link that enables multiple units to be daisy chained together. The link incorporates self-healing emergency stop connections eliminating the need for shorting plugs in the system. Linked units will automatically address channels according to their position in the chain.
High resolution graphic displays offer comprehensive channel feedback including channel number, status, LibraCELL and encoder information.
Safety features include hoist presence indication, limit monitoring, and group halting on fault conditions.
KEY FEATURES
- Low voltage and direct control versions available
- 8 channel capacity
- Link up to 12 units (96 channels) together in a single chain
- Multiple chains can be linked via Ethernet for larger system requirements
- Hoist presence and limit detection (low voltage units only)
- Individual channel feedback displays
- Self-healing emergency stop connections
- 8, 16 and 32 channel handheld remote options
- When used with DigiLink, multiple remotes can be used simultaneously to control a system
- 'GO' link to allow multiple units to be controlled from a single go button
- Local controls on the front panel
- User interface available in multiple languages
- Automatic phase reversal with user override key switch
- Universal voltage input for worldwide use
- Miniature circuit breaker (MCB) protection for each pair of hoists
- Optional RCD protection available
- Permanent and switched hoist power modes for use with 'pickles'
- Various output options include Socapex, Harting, P14 and Ceeform
- Optional upgrade for LibraCELL connectivity with local underload and overload limits
- Optional upgrade for Ethernet and position encoder (pulse, incremental or absolute) connectivity
CLICK HERE to download DigiHoist Spec Sheet
