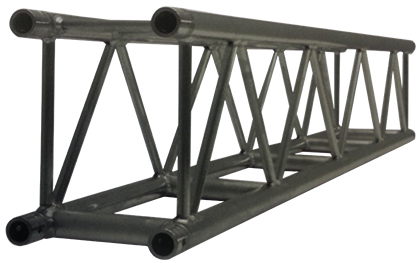

M290 x M390 Truss (RTL)

M290 x M390 Truss (RTL)

This rectangular truss combines the strength of 390 Quatro truss but saves 25% space and has better possibilities for rigging. Diagonal webbing in the top allows high lateral loading. The multi-cube corner blocks allow all 290 Quatro truss to be connected vertically.

  • Trio truss can be put through as truss has parallel webbing
  • Horizontal bracing at node points to take horizontal force caused by slinging 4
  • 8 mm bottom brace for ease of suspension of lighting
  • 25% saving of transport volume compared to QTP
  • Easy pin assembly due to horizontal position of pin holes at bottom

Technical specification

Dimension

Main tubes

48 x 3 mm

1,89” x 0.12”



Braces

48 x 3 mm and 20 x 2 mm

1,89” x 0,12” and 0,78” x 0,08”



Outer dimensions

390 x 290 mm

15,35” x 11,40”



Axes dimensions

340 x 240 mm

13,38” x 9,45”



Max. angle downwards

28 dgr



Weight



7,6 kg



Material



Aluminium alloy EN AW 6082 T6
