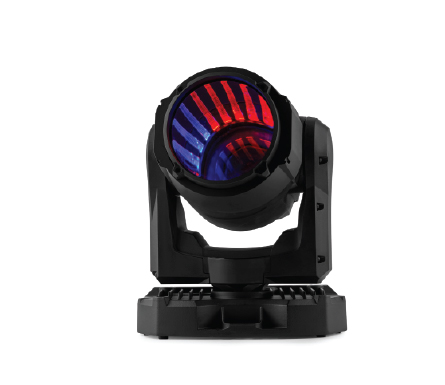

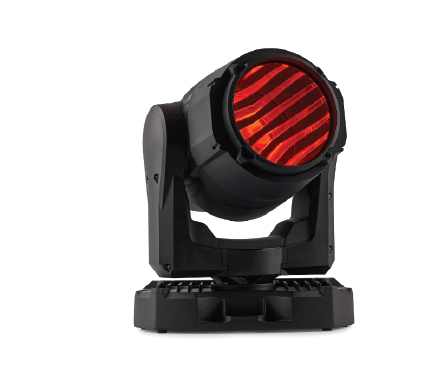

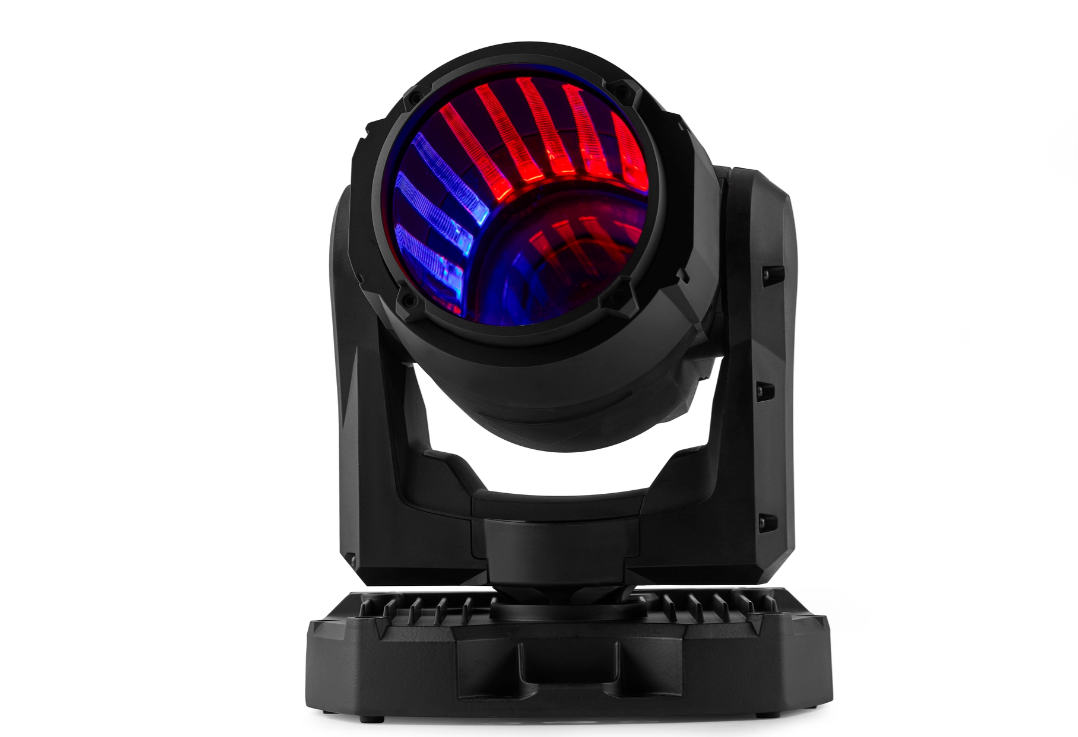

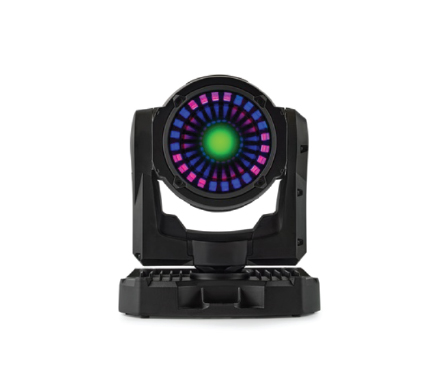

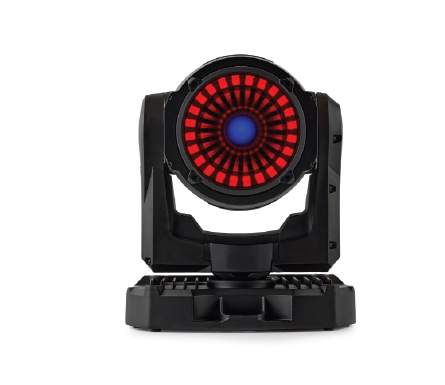

MAC One Beam: ULTRA-COMPACT BEAM MOVING HEAD
The MAC One Beam from Martin Professional is the newest member of the MAC One family—designed to deliver tight, high-intensity beams and captivating eye-candy effects in a compact, lightweight form. Built for lighting designers and rental professionals, MAC One Beam expands creative possibilities, free from weight, size or budget constraints.
At its core sits an automotive-grade LILI (Laser Illuminated Lighting Instrument) engine, engineered for precision and reliability. This compact light source produces an exceptionally sharp beam with an intensity of 7 million candela—more than enough for bold aerial effects in concert, TV, and event environments. MAC One Beam’s optimized output alleviates growing industry concerns around eye safety, offering a responsible balance of performance and protection.
MAC One Beam excels in three key areas. First, its razor-sharp beam and fast CMY color mixing deliver dynamic, high-contrast effects with snappy responsiveness. Second, its compact footprint and sub-5 kg weight allow dense fixture deployment, unlocking bold looks while reducing transport costs and rigging complexity. Third, a mesmerizing three-dimensional backlight effect—featuring individually controllable light guides behind a bold 120 mm lens—adds visual depth and stage presence, even when the beam is idle.
Designed for versatility, MAC One Beam integrates seamlessly with its sibling, the MAC One wash fixture, using a unified ecosystem of rigging accessories, including the MAC One Fourbar and VDO Grid Mount System. This compatibility empowers designers to mix fixture types freely—combining beam and wash functionality within the same rig, layout, or flightcase—without sacrificing efficiency or cohesion.
Whether building dynamic arrays, linear matrices, or immersive light walls, shared accessories simplify setup and expand design flexibility. With the MAC One Beam and the MAC One wash fixtures working in tandem, designers gain more creative freedom to craft layered, multidimensional looks using compact fixtures that rig fast and scale effortlessly.
From low-ceiling installations to high-impact concert rigs, MAC One Beam empowers designers to think bigger, rig smarter, and elevate every show with compact brilliance and eye-catching flair.
To learn more about the VDO Grid Mount System, click here.
Dynamic Effects
- More than 200 built-in FX macros with control of foreground color, background color, speed and direction
- P3 video mapping of fixture Beam and/or Lightguide Backlight pixels
- P3 Mix allowing crossfade between video looks and DMX looks
- Extreme-speed pan, tilt and CMY
Cooling and Noise
- Ultra-quiet cooling system (no fans in base, only fans in head)
- Theater / Broadcast mode at just 21.5 dB(A)
- Low noise pan, tilt and CMY mode
Construction
- Weight: 4.95 kg / 10.91 lbs.
- Dimensions: 254 mm (10.00 in.) x 303 mm (11.93 in.) x 233 mm (9.17 in.)
Control
- DMX, Art-Net, sACN & Martin P3 control
- Fail-safe bypass on Ethernet ports
- Battery-powered display for setup and configuration
Installation
- Single omega bracket attachment
- M12 threaded holes for direct clamp attachment or attachment to four-bar accessory
- Optional four-bar accessory
- Optional VDO Grid Mount Ring accessory
Videos
| Size | ||||
Specifications |
||||
 MAC One Beam - Spec Sheet |
5.62 MB | |||
| MAC One Family - SiP Spec Sheet |
1.26 MB | |||
| MAC One Family - Flightcase Spec Sheet |
7.59 MB | |||
