mini-mx Streaming Video Production Mixer

Mix to the max.
The all-in-one mini-mx video enables accessible professional multi-source video productions with cameras,  laptops and multiple audio sources. For live presentation and streaming, do it all with ease from the unique and fully featured mini-mx.



mini-mx supports VISCA protocol for PTZ control. Control up four separate cameras with pan, tilt, zoom and focus.
The joystick provides tactile control for each PTZ camera. Used together toggle, set pan, tilt, zoom and focus from the front panel. Joystick and toggle are additionally dynamically assigned to settings including scale, position and crop for enhanced usability.

KEY FEATURES

  • 4K multi-channel streaming video mixer
  • Built-in 5.5 inch touch screen for menu operation
  • Quad HDMI 2.0 inputs, resolutions up to 4K@60>
  • Dual HDMI 1.3 outputs for monitoring of multi-window PVW and PGM
  • Dual MIC In, Dual Audio Out for audio monitoring
  • Mix for HDMI embedded and external audio
  • One-key recording.  Recording capacity of hard drive is up to 2T
  • Support multi-layer overlay,  layer scaling and cropping
  • 15 switch effect modes
  • 5-direction joystick for controlling up to 4 PTZ cameras
  • Save and store up to 16 scene presets. One-click for preset recall
  • Control via computer and software
  • Support Chroma Key
  • One-key quick switch between portrait and landscape screen
  • Stream to up to 4 platforms simultaneously over IP and 32 platforms via TAO APP
Literature
mini-mx Product Brochure EN V1.0 3/22/2023 12:00:00 AM 8.0MB PDF
mini-mx Specification EN V1.0 3/23/2023 12:00:00 AM 830KB PDF
Documents
mini-mx Quick Start EN V1.0 3/29/2023 12:00:00 AM 3.0MB PDF
mini-mx User Manual EN V1.0 3/29/2023 12:00:00 AM 5.0MB PDF

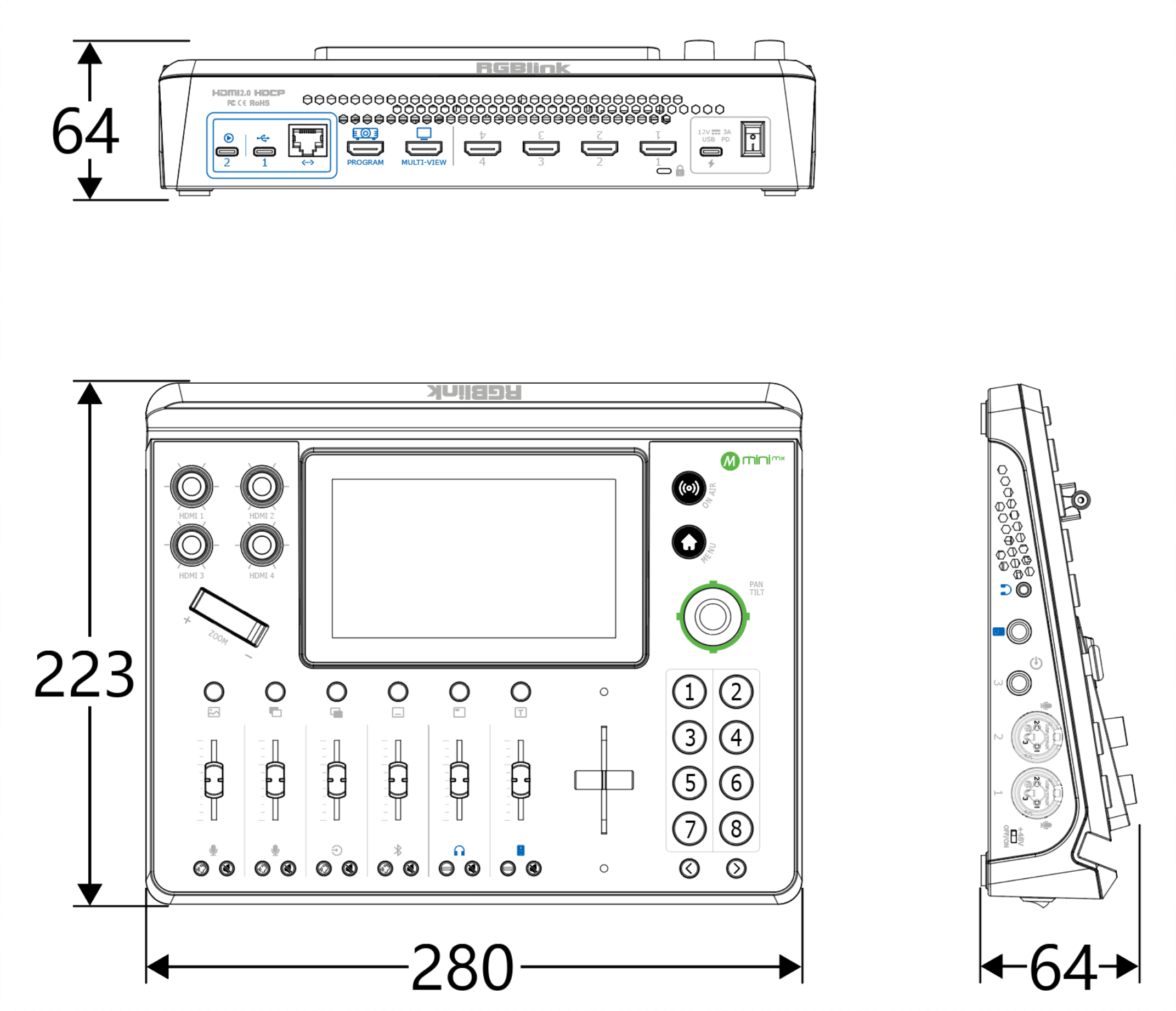

mini-mx_Dimensions
0.0/5 rating (0 votes)
