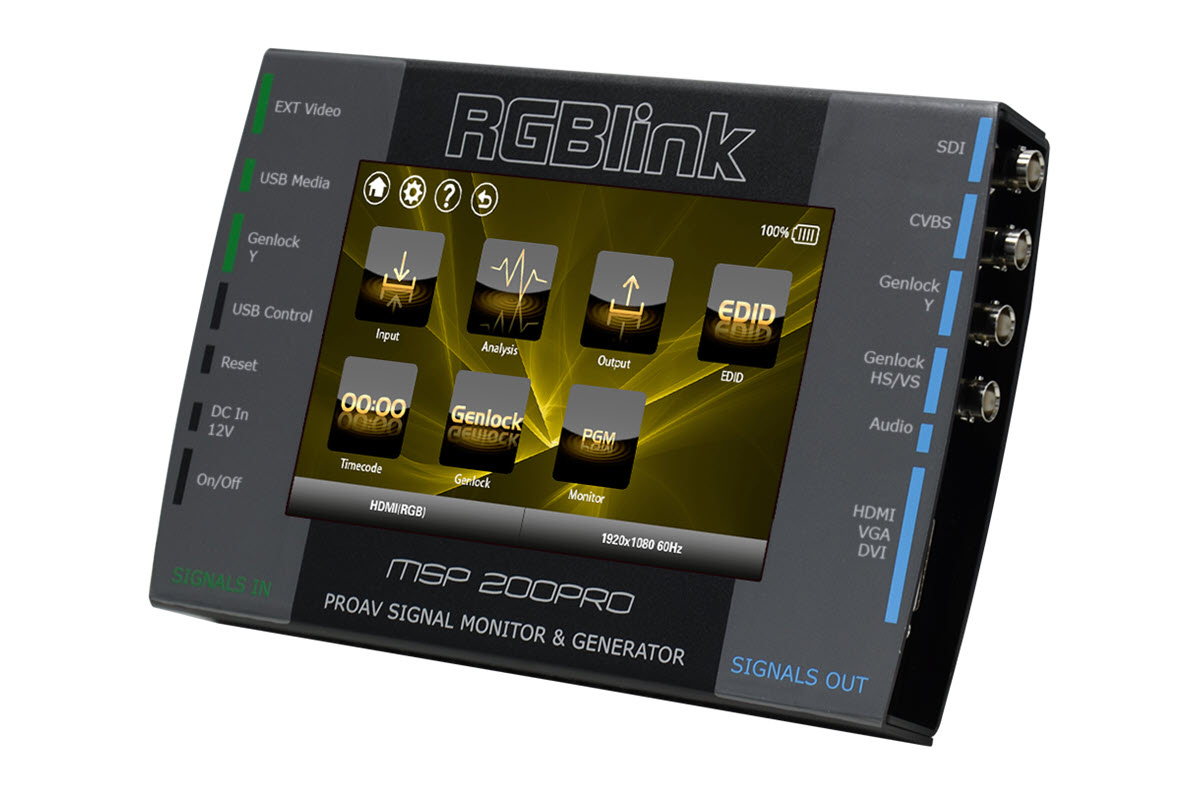

MSP200pro Signal Monitor & Generator
The essential format and Test Pattern Generation are just two of the many features of the MSP200pro. Standard video outputs for 3G-SDI, DVI/HDMI and CVBS are built-in. You can set the output format from the built-in touch screen display by selecting from a wide range of common formats.
Popular test patterns can be easily selected with motion or without, and a time code can be generated and displayed, allowing for inspection frame delay. The MSP200pro signal monitor and generator also includes a USB media input port as standard. Use a MPEG4 or image as a test signal source, opening up many possibilities for producing bespoke testing configurations.
Optional install an SDI or HDMI input module to make use of other external video sources with built-in EDID management.
For the broadcast professional there is Genlock, both in-and-out, plus on-screen installation of wave forms.
KEY FEATURES
- Signal Generator, Inline Preview Monitor, Media Player, Cross Convertor
- Touch Screen control
- Output a range of signals simultaneously
- Set and select from a range of common output formats
- Genlock Y Generator and Genlock Y & HS In/Loop
- Input live signals for preview and Inspection
- Play and use USB media for custom test signals or as a Media Player source
- On Board Test Pattern Generator
- On board Time Code Generator
- Embedded Audio Test Signal Generator
