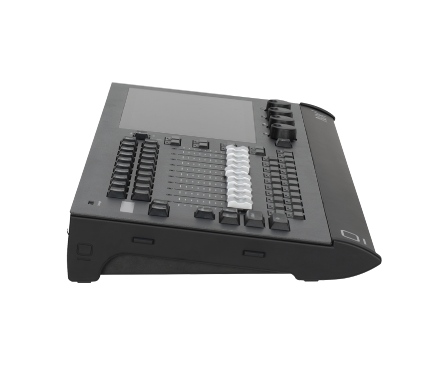

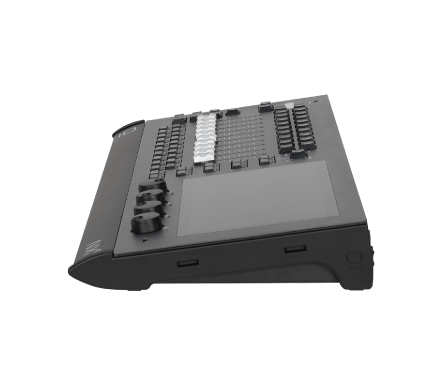

NX1-16 Lighting Controller: A powerful entry point into the ONYX ecosystem

The NX1-16 is the essential lighting controller in the innovative and powerful ONYX platform. Fully featured and unrestricted. It offers the complete ONYX experience without compromises in an ultra-compact package.

Key Features

  • Portable and compact fully featured lighting console
  • 10.1” Full HD multi touch screen, 1x external touch display
  • ONYX License (16 Universes)
  • Fully integrated industrial processing
  • 10 Motorized Playbacks, 10 Playback / Function Hybrids, 4 Encoders, Master Go section

The NX1-16 is the essential lighting controller in the innovative and powerful ONYX platform. Fully featured and unrestricted if offers the complete ONYX experience without compromises in an ultra-compact package.

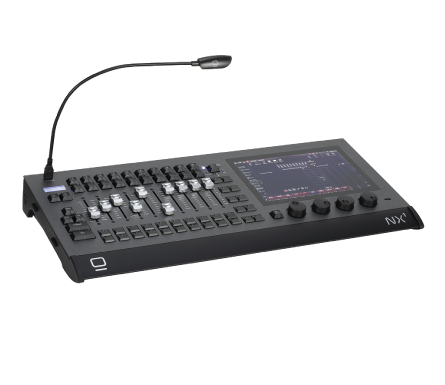

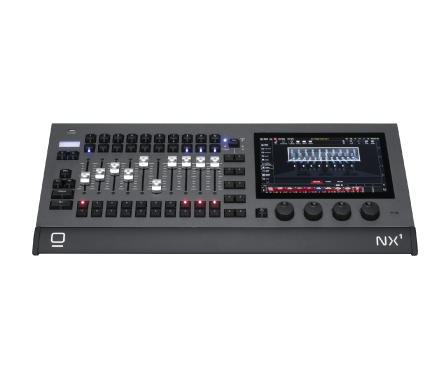

Utilizing the full ONYX Operating System the NX1-16 includes a high-brightness 10.1" HD multi-touch screen; 4 assignable parameter encoders; 10 full motorized playbacks with four freely assignable buttons plus and extra playback and function key hybrid array. A dedicated Master Go section rounds out the efficient front panel design.


Including the latest in industrial components the NX1-16 contains a powerful Intel processor, high speed NVMe SSD drive and 16GB of DDR5 RAM, allowing fast boot times, instant operation and the ability to process 16 Universes right inside the console. With four DMX ports, dual Gigabit network ports for up to 16 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX1-16 has ample connectivity and power for a wide variety of shows and applications. One additional touch monitor is supported for even more direct access at anytime.

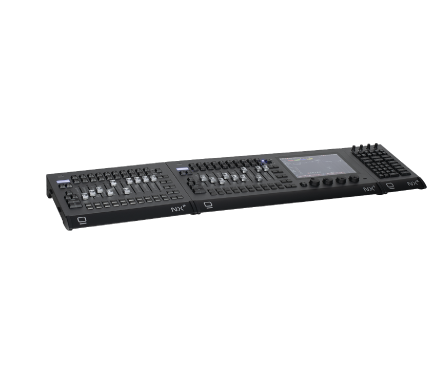

The NX1-16 is further expandable with the dedicated NXK keypad and the NXP motorized playback wing. A simple magnetic alignment system allows attachment on either side of the NX1-16. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.

Downloads


NX1-16 - SPEC SHEET  Specification Sheet PDF
OBSIDIAN NX1-16 DIMENSIONS  Dimensional Drawings PDF
OBSIDIAN NX1-16 - 2D CAD  CAD Drawing DWG
