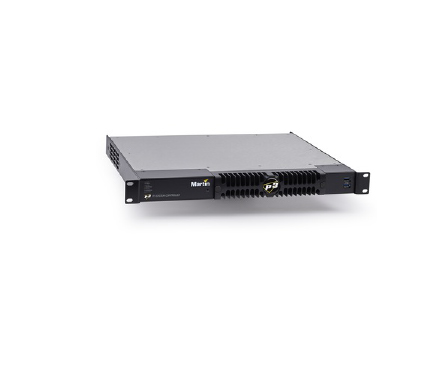

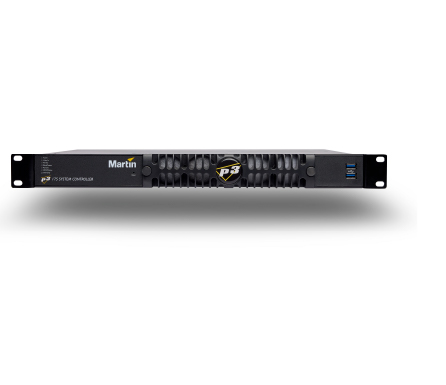

P3-175 System Controller

The Martin P3-175 System Controller supports video input up to Full HD (1920x1080) and allows fixtures to be mapped onto the visual canvas, patched, addressed, and configured without having to directly access the fixtures. Martin fixtures can be easily controlled from a lighting desk, video source or a mix of both.

They integrate with third-party software by importing and exporting industry-standard MVR files, eliminating duplicate actions and enabling designs to be easily shared.

Uniquely creative looks can be created for each application, whether using video content, traditional DMX controls, Art-Net / sACN PixelMapping, or a mix of control methods.

The entire system is fully synchronized, ensuring all elements work cohesively without visible latency. They support Full HD video input over HDMI and NDI inputs, outputting up to 520,000 pixels to up to 2,000 fixtures. Real-time previews show you how DMX controls and video will be rendered on the fixtures.

MIX DMX AND VIDEO CONTROL

Gives the lighting designer the freedom to create unique looks by entering parameters or by sending content to fixtures to ultimately

create the ideal look that the designer envisions.

TIME-SAVING MVR INTEGRATION

Mapping and patches can be exported to third-party lighting consoles, visualizers and CAD programs. There is no need to re-create a system repeatedly using different software packages.

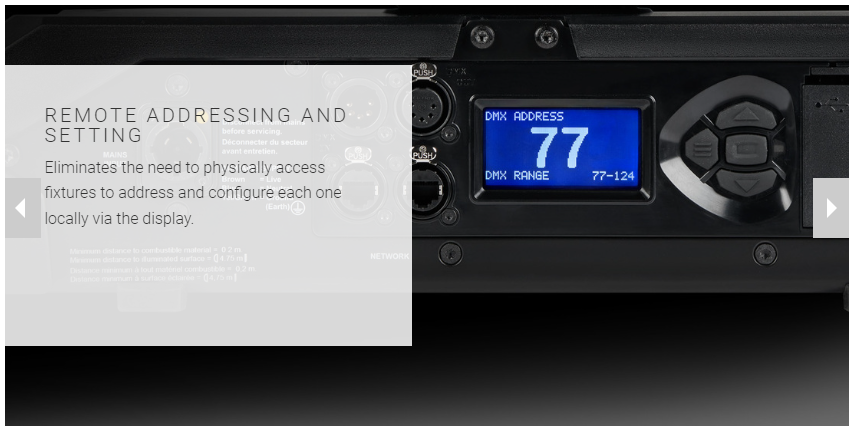

REMOTE ADDRESSING AND SETTING

Eliminates the need to physically access fixtures to address and configure each one locally via the display.

REAL-TIME MONITORING

Offers a complete view of your entire system to diagnose any issues.

SYSTEM-WIDE SYNCHRONIZATION

Deliver perfect performance across the entire system, without visible lag and latency issues.

LIVE PREVIEW

Visualize results during pre-programming without connecting actual fixtures.

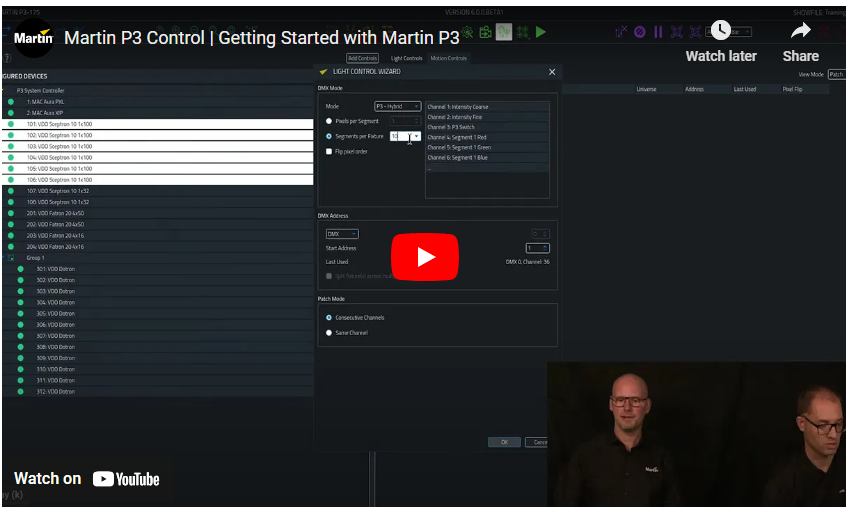

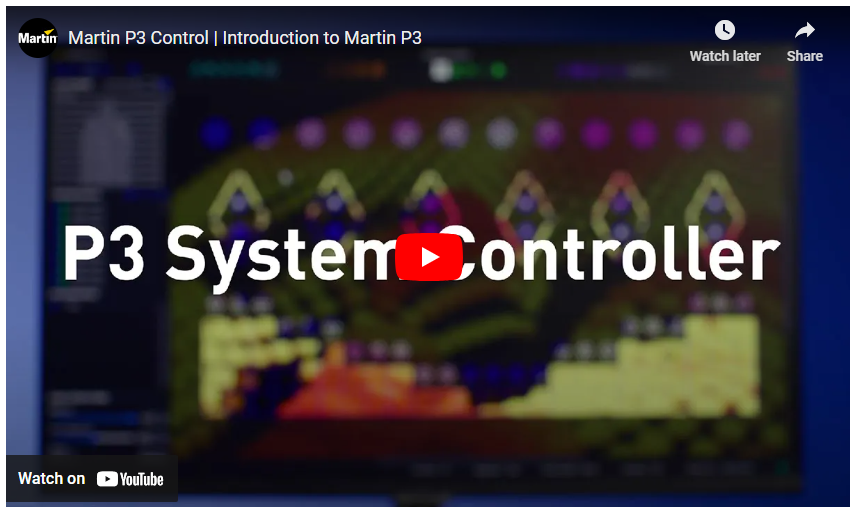

VIDEOS

FEATURES

• Full HD video input compatible (HDMI & NDI)
• HDMI input resolution up to 1920 x 1080
• NDI input resolution up to 1920 x 1080
• 256 universes of Art-Net / sACN input
• Outputs up to 520,000 pixels on 2,000 fixtures
• 1U rackmount
• Map a mix of Martin fixtures onto one visual canvas
• Patch, address, and configure Martin fixtures, without having to directly address and configure each fixture
• Export mapping and patch to third-party lighting controllers, CAD programs and visualizers via MVR
• Import mapping and patch from third-party lighting controllers, CAD programs and visualizers via MVR
• Export mapping mask to third-party media servers
• Provide real-time feedback and monitoring of Martin fixtures
• Provide remote monitoring of the P3 System Controller and all connected fixtures without physically being onsite

SPECIFICATIONS

Width: 482.6 mm (19.0 in.)
Height: 44.45 mm (1.75 in.) (rackmount 1U)
Depth: 343.0 mm (13.5 in.)
Weight: 3.5 kg (7.7 lbs.)

CONTROL/USER INTERFACE

User Interface: Full HD (1920x1080) or better monitor (VGA, DVI, HDMI or DP), USB keyboard & USB mouse
Device Status: Status indication LEDs

HDMI VIDEO INPUT

Standard: HDMI 1.4a
Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
Framerate: Supporting frame rates up to 75fps
Scan: Progressive & Interlaced
EDID: Customizable via user interface
Colour Depth: 8/10/12-bit
Colour Sampling: RGB 4:4:4, YCbCr 4:4:4 & YCbCr 4:2:2
Colour Formats: RGB, YCbCr 601, YCbCr 709 & YCbCr 2020

NDI VIDEO INPUT

Standard: NDI
Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
Framerate: Supporting frame rates up to 75fps

VIDEO PROCESSING

Controller pixel processing capacity: 520,000 pixels (expandable by adding P3-175s)*
Controller fixture capacity: 2,000 fixtures (expandable by adding P3-175s)*
Maximum workspace area: 8,847,360 pixels
Maximum active capture area: 2,073,600 pixels
System processing depth: 16 bits per color (48 bits per pixel)
System latency: 2 frames
Latency between first and last fixture: None
Scaling: Yes, global and mixed pixel pitch
Gamma Curve Control: Yes, adjustable
Image Control Parameters: Hue, Saturation, Brightness, Contrast, Lowlight & Gain
Mapping: Real-time
Colour Temperature Control: Real-time
Colour Space Control: Real-time
Preview: Real-time (incoming video & mapping onto fixtures)
*See also P3 System Controller Capacity Info Note on Downloads page

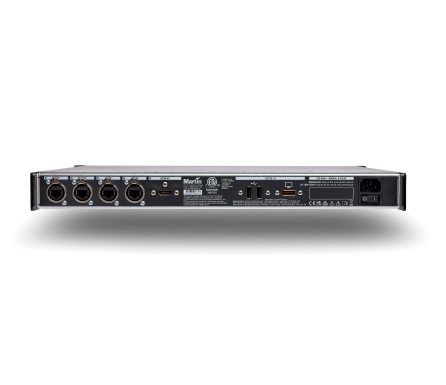

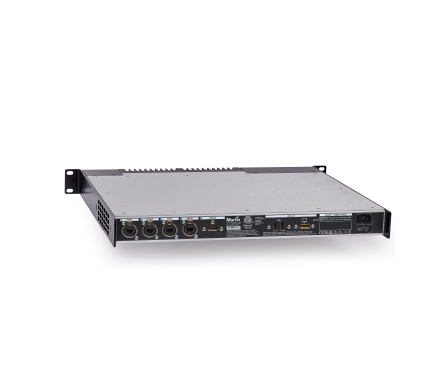

CONNECTIONS

Power input: IEC socket with integrated power switch
P3 data in/out: 1x etherCON socket (100/1000Mbit)
EtherDMX Network (Art-Net, sACN and Kinesys K2/Vector): 1x etherCON socket (100/1000Mbit)
Management Network (remote management, syslog and webserver): 1x etherCON socket (100/1000Mbit)
NDI Video In: 1x etherCON socket (100/1000Mbit)
HDMI Video In: HDMI 1.4a
Peripherals and USB memory devices: 2 x USB 2.0 ports and 2x USB 3.0 ports
User interface monitor: DisplayPort++ (compatible with adapters to DVI, HDMI and VGA, not supplied)

Martin P3-175 System Controller: P/N MAR-90721100
