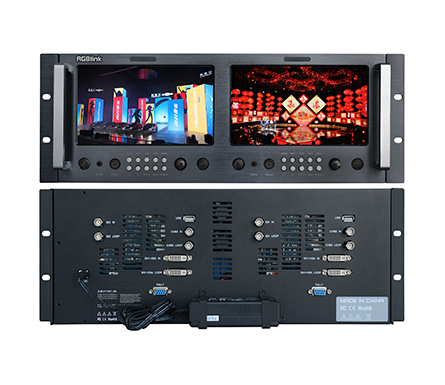

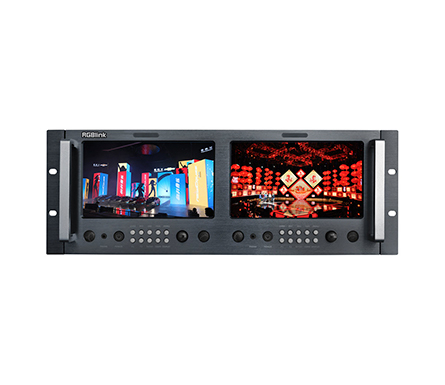

RMS8424S Dual Preview Monitor
RMS 8424S is a 19 inch 4RU standard rack mounting LCD monitor, with 2 high resolution 8.4 inch LCD panels of independent input controlling, 1024×3(RGB)×600, and wide viewing angle.
Each monitor of RMS 8424S accepts 1 3G/HD/SD-SDI, 1 DVI, 1 VGA, and 1 Composite video, each input with loop through output. Support SDI and HDMI embedded audio output.
RMS 8424S has a 2-pin pole 12V DC power connector for all the 2 LCD panels.
KEY FEATURES
- Standard 4 unit rackmount size
- 8 inch LCD ×2
- 16:9 / 4:3 adjustable
- 3G/HD/SD-SDI, DVI, VGA, Composite video
- SDI embedded audio output via 3.5mm earphone socket
- HDMI embedded audio output via 3.5mm earphone socket
- Max input resolution 2048 x 1152 or 2560 x 816
- Underscan / Overscan switch
- View angle adjustable structure
