454 4×2.2 A Transistor Dimmer

4×2.2 A Transistor Dimmer

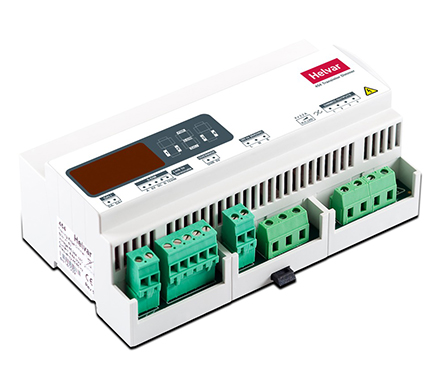

The DIN-rail mounted 454 is a four-channel transistor dimmer. It can operate in one of two modes: leading edge or trailing edge. All four channels operate in the same selected mode, with each channel capable of controlling 2.2 A.

It supports capacitive and resistive loads, and it can be connected directly to mains-voltage lamps and to low-voltage lamps with electronic transformers.

The 454 is not for use with inductive loads.

Each channel of the dimmer has both current and thermal protection. The dimmer features an LED segment display. There is a push button user interface for monitoring, manual configuration and control purposes

QUICK FACTS

• Product family: Imagine, DIGIDIM
• Type: Leading or Trailing Edge
• Mounting: DIN Rail
• Number of channels: 4
• Max load / channel (A): 2.2
• Universal power supply
