860 4K HDR Signal Generator

18G 4K HDR Signal Generator & Analyzer

860 HDMI 18G (6G per graphic channel) 4K HDR Signal Generator & Analyzer is an advanced and handy tool for generating, testing and verifying the signal path within your (up to) 4K@60Hz (4:4:4) HDMI 2.0/HDCP 2.2 ecosystem.

With 88 built−in resolutions, 55 test patterns and over a dozen types of AV analysis functions, this unit provides an enormous range of testing options.

HDMI data packet, EDID and HDCP analysis is supported along with EDID upload and emulation. Additionally the Status and Control Data Channel (SCDC) can be monitored, enabling HDMI 18G signal detection and analysis. Up to 8 channels of LPCM audio test tones can be generated with a wide range of frequencies and audio levels.

QUICK FACTS

• 88 built–in resolutions, 55 test patterns
• Over a dozen types of A/V analysis functions
• Supports resolutions up to 4K@60Hz (4:4:4)
• HDR10, HDMI 2.0, HDCP 2.2 & HDCP 1.4 compliance

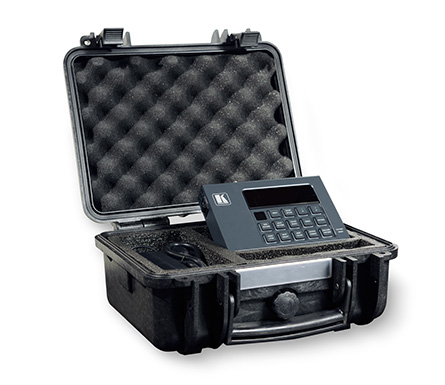

• Heavy–duty, protective case included
