910 Router

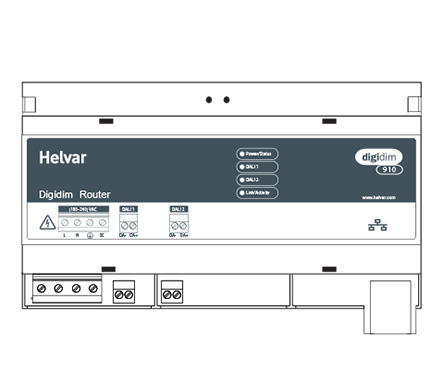

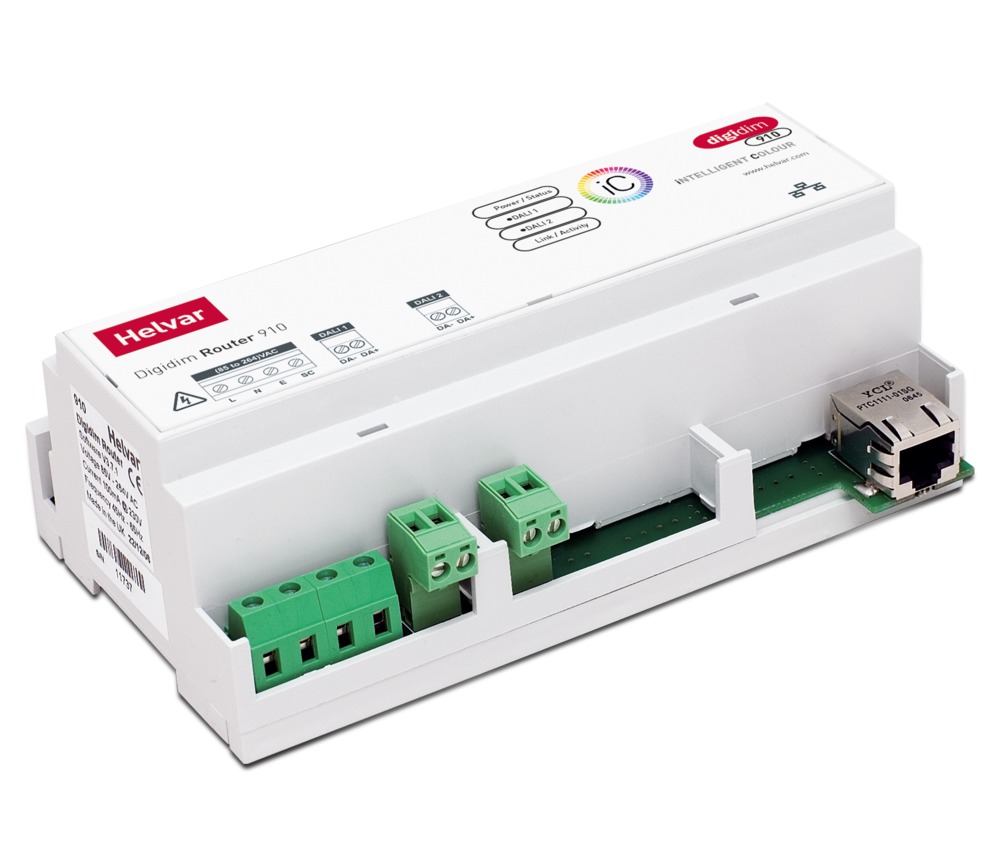

DIGIDIM Router (910)

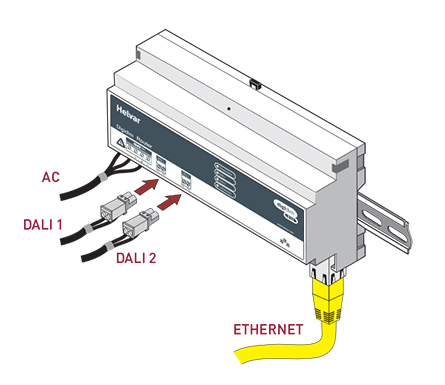

The 910 DIGIDIM Router uses an Ethernet connection (10/100 Mb/s) as a network backbone to seamlessly combine DALI networks. Basic functionality is available out of the box without any programming. Helvar’s Designer software allows for advanced configuration and functional programming of the router. The system provides energy-saving features via presence detection and daylight harvesting.

Further automation can be achieved through scheduled events. A PC can be connected to the system for diagnostics and logging purposes if required, but there is no need for PC control in daily operation, as all data is stored within the system itself. The elimination of a central controller ensures that no single point of failure can cause a total system shutdown.

QUICK FACTS

• Product family: Imagine
• Integrating to building systems
• Networkable for large scale systems
• Universal power supply
• Built-in real-time clock
