DAM614: 6x4 | installation audio digital mixer

Digital Matrixes | Reference: CDAM614C

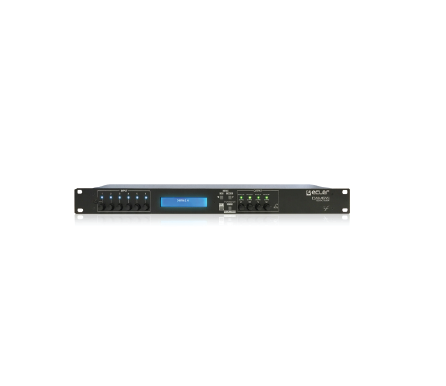

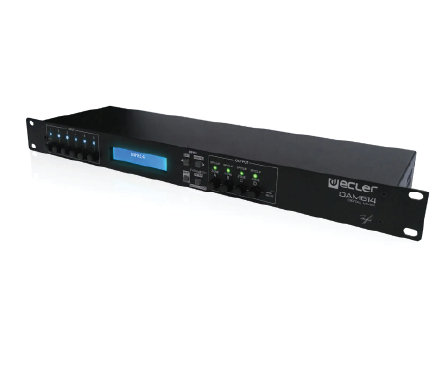

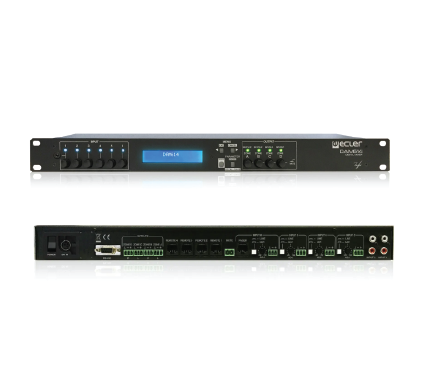

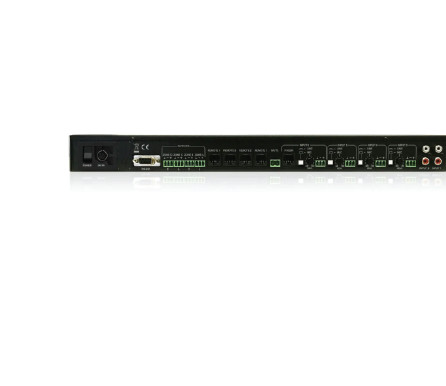

DAM614 is a fully programmable audio digital mixer. It includes 6 audio inputs and 4 audio outputs, front panel inputs and outputs level controls, DSP processing, RS-232 connectivity and 4 REMOTE control ports (0-10VDC).

Its 4 outputs can be used as mono independent zones or coupled as stereo zones. Regarding inputs, the first 2 are stereo LINE inputs, and the 3rd, 4th, 5th and 6th ones are MIC/LINE ready (phantom available), being possible to use them independently (mono) or as stereo-coupled inputs.

Features

DSP @ 24 bits / 48kHz

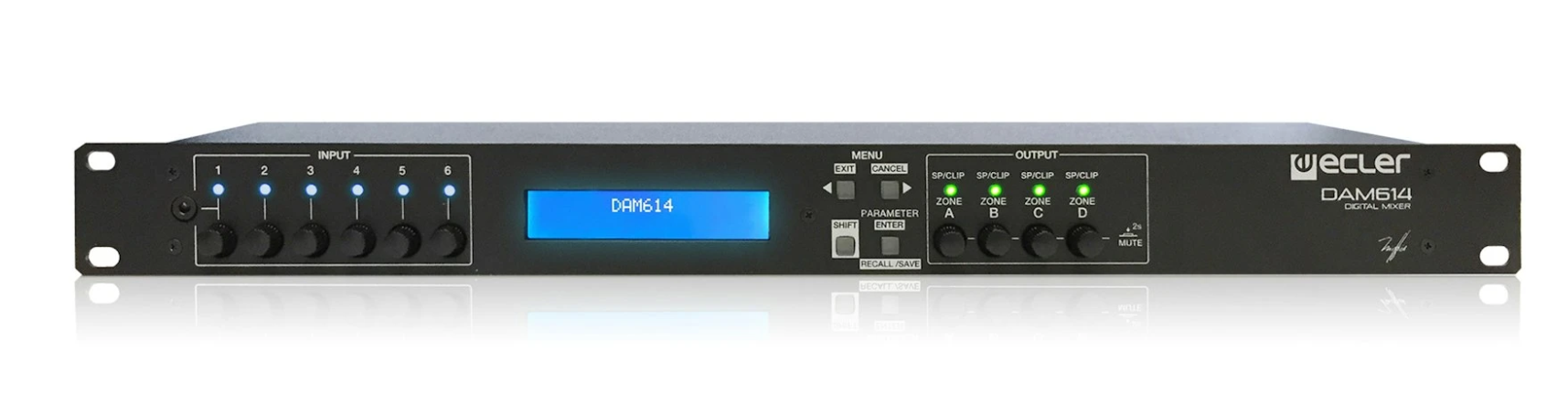

Front panel LCD display
6 front panel input control digital knobs (one per input)
4 front panel output control digital knobs (one per output)
4 front panel keys, for parameters adjustment and menus navigation
Processing:- Independent level control for each input and output- Independent mixer for each output zone- Crossover filters available for each output- Independent 10 band graphic EQ for each output- Independent and adjustable High-pass filter available for MIC/LINE inputs- 2 level priority PAGER / DUCKER function, triggered by MIC/LINE inputs- Independent Noise Gate function for MIC/LINE inputs- Independent Feedback Suppressor Function for MIC/LINE inputs- Adjustable delay time for 2 outputs
