4K60 4:2:0 DisplayPort++, HDMI & VGA Auto Switcher with Bidirectional PoE over HDBaseT and Maestro Room Automation

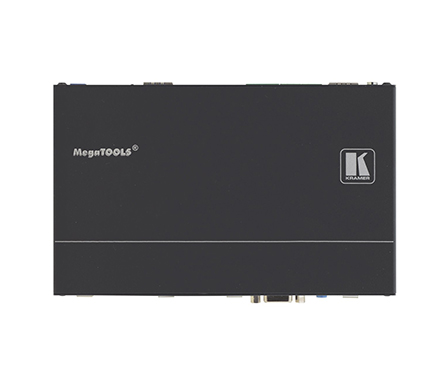

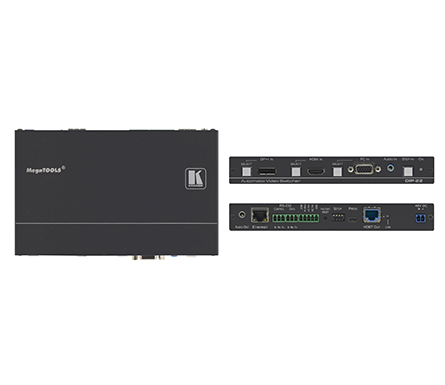

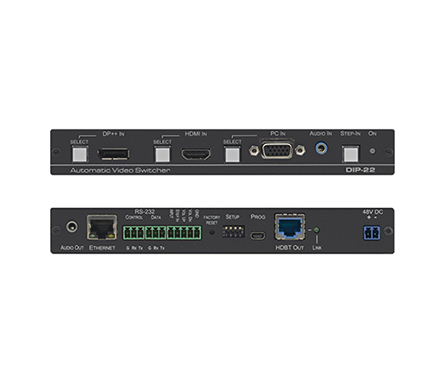

DIP−22 is an extended reach 4K@60Hz (4:2:0) HDBaseT transmitter and Step−in commander for DisplayPort++, HDMI and VGA video input and unbalanced stereo audio input. It provides full room automation including control of lights, screens, shades and many other exciting options. In addition, DIP−22 accepts Ethernet and serial data input signals for control.

DIP−22 is a PoE (Power over Ethernet) provider and acceptor, so it can simplify your installation and save you time and money by powering other devices or by receiving power over the network.


  • Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Resolution — 4K@60 (4:2:0)
  • Simple and Powerful Maestro 1.5 Room Automation
  • Automatic Live Input Detection
  • Local Step–In Switching
  • Bi–directional PoE: Provides and accepts power
