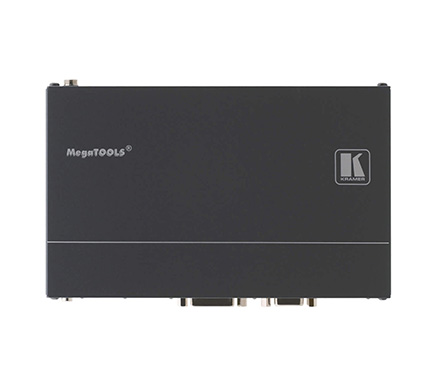

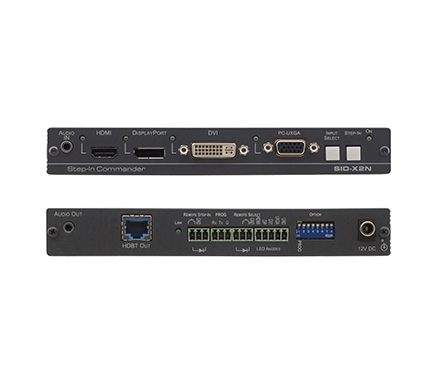

SID-X2N DisplayPort, HDMI, VGA & DVI Auto Switcher over HDBaseT

DisplayPort, HDMI, VGA & DVI Auto Switcher over HDBaseT

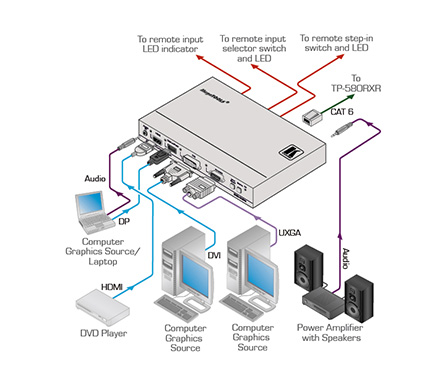

The SID−X2N is an HDBaseT twisted pair transmitter and step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals.

QUICK FACTS

• Max Resolution — 1080p @60Hz @36bpp
• Control — Local Step–in Input Select (button or Contact Closure)

 KEY FEATURES

• HDTV Compatible.
• HDCP Compliant — Works with sources that support HDCP repeater mode.
• HDMI Support — Deep Color, x.v.Color™ and 3D.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
• Data Equalization and Reclocking.
• Input Signal Detection — Based on video clock presence.
• Automatic Input Selection — Based on manual selection or last connected input.
• Automatic Analog Audio Detection and Embedding.
• Local Balanced Audio De–Embedding.
• Support for Digital Audio Formats.
• Lockable EDID.
• System Range — Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–HDKat6a cables.
• Local Step–In Switching — Button & contact closure.
• Power Supply — Requires independent power supply.
• Max. Data Rate — 6.75Gbps (up to 1080p @60Hz 36bpp) in normal mode; up to 4.95Gbps (up to 1080p @60Hz 24bpp) in ultra mode.
