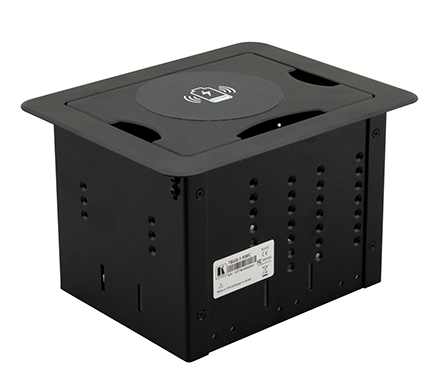

TBUS-1-KWC TBUS with Wireless Charging Spot

TBUS with Wireless Charging Spot

TBUS−1−KWC is a modular enclosure using the same inner frames as the TBUS−1Axl and TBUS−1N with an integrated, surface mount, wireless charging spot flush−mounted on the TBUS bezel.

QUICK FACTS

• Wireless charging spot in TBUS–1A

KEY FEATURES

• Integrated Wireless Charging Spot — For mobile phones integrated in the TBUS.
• Flush Surface
• Power Supply — Requires a supply voltage of 5.2V DC at 4.0A.
• Current Input — 1A, IEEE 802.15.4 based RF channels.
• Power Output — 6 to 15W.
• Regulatory Compliance — PMA type 3 compliant
• EMC Emission — EN5502/CISPR22
• Safety — EN60950–1, EN60950–1, UL60950–1, IEC 60950–1, RoHS, REACH
• CE and FCC compliant, UL/cUL listed
• Qi Standard Compliant
• Cutout Dimensions — 152+2mm x 191+2mm (6+0.08in x 7.5+0.08in).
