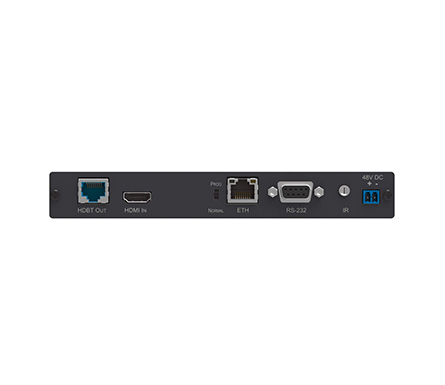

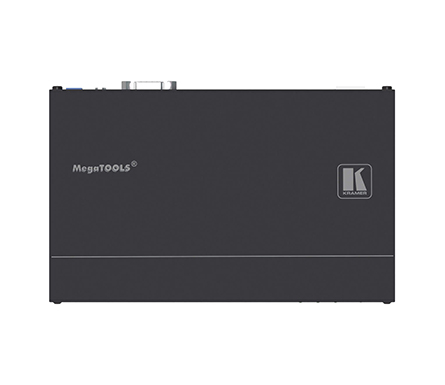

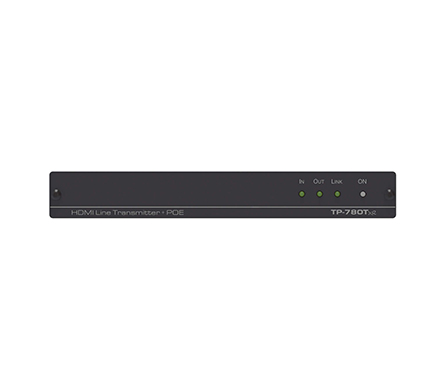

TP-780Txr HDMI HDCP 2.2 PoE Transmitter with Ethernet,

4K60 4:2:0 HDMI HDCP 2.2 PoE Transmitter with Ethernet,
RS–232 & IR over Extended–Reach HDBaseT

TP−780Txr is a high−performance, extended−reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI, Ethernet, RS−232 and IR signals over twisted pair.

The TP−780Txr converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. * DECORA® is a registered trademark of Leviton Manufacturing Co., Inc

QUICK FACTS

• HDBaseT 1.0 transmitter
• Up to 180m (590ft) at 1080p
• Up to 100m (330ft) at 4K@60Hz (4:2:0)
• Up to 4K@60Hz (4:2:0) 24bpp video resolution
• Ethernet & control signal extension
• PoE provider
