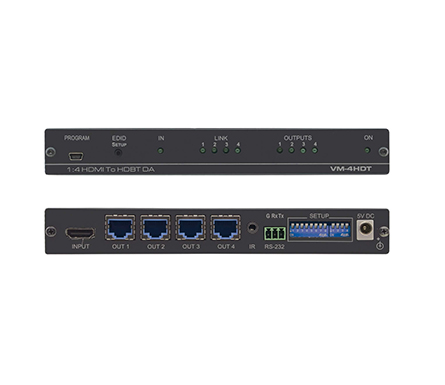

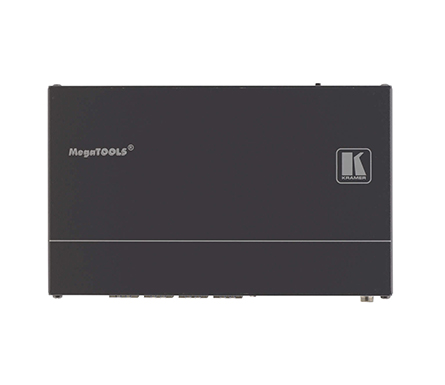

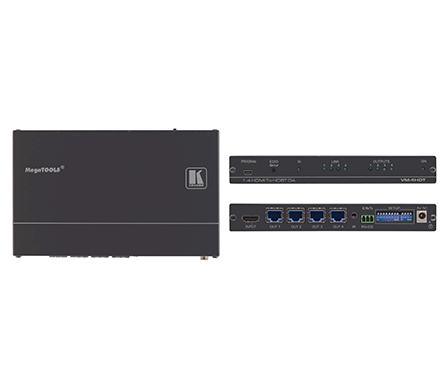

VM-4HDT HDMI to Long–Reach HDBaseT DA
1:4 4K60 4:2:0 HDMI to Long–Reach HDBaseT DA

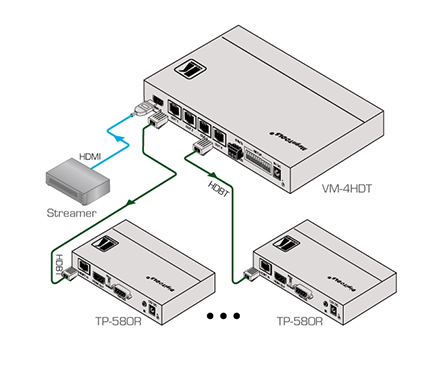

VM−4HDT is a high−quality, long−reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one HDMI input, with IR and RS−232 control signals, converts them to HDBaseT extension line signal and distributes it to four HDBaseT outputs that connect to compatible HDBaseT receivers such as the TP−580R. VM−4HDT distributes HDMI signals with up to 4K video resolution, along with their extension over HDBaseT.
QUICK FACTS
- 1:4 HDMI extender distributor
- Up to 70m (230ft) at 1080p
- Up to 40m (130ft) at 4K (4:2:0)
- Up to 4K (4:2:0) 24bpp video resolution
- HDMI 2.0, HDCP 1.4, HDBaseT 1.0 compliance
