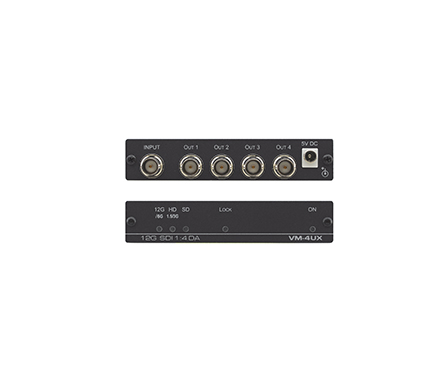

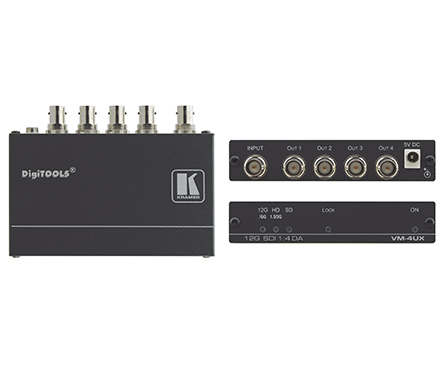

VM-4UX 4K distributor for standard broadcast

1:4 4K 12G SDI DA

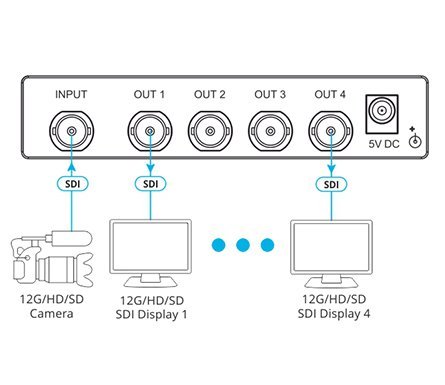

The VM−4UX is a compact and high performance 1:4 4K distributor for standard broadcast−grade SDI signals of up to 12G transmitted data rate. It auto−adapts to the data rate of one SDI input signal, equalizes and re−clocks the signal to improve transmitted signal reach, and distributes the signal to four identical SDI outputs.

QUICK FACTS

• 1:4 SDI distributor
• Resolution — Up to 4K (4:2:2) 30bpp
• Data rate — Auto–adapting, up to 12Gbps
• Input Reach — Up to 80m (260ft) at 12Gbps
• Compliance — SMPTE standards
• Lockable connections
