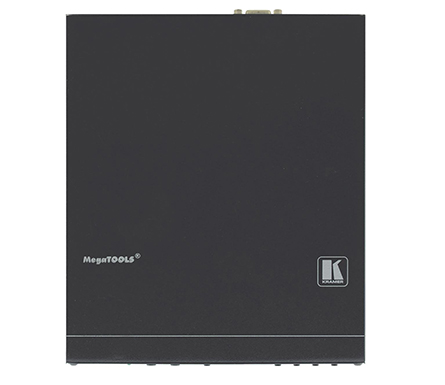

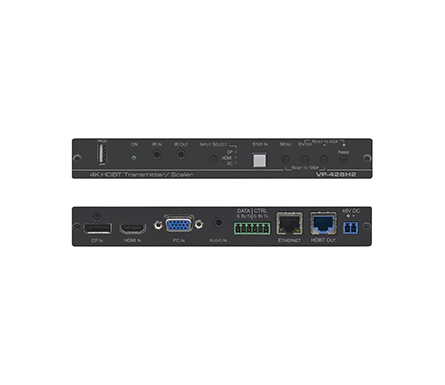

VP-428H2

DisplayPort, HDMI & VGA Auto Switcher/Scaler and PoE Provider over HDBaseT with 4K60 4:4:4 HDCP 2.2 Input Support

VP−428H2 is an HDBaseT 4K transmitter/scaler with HDMI, DP and VGA inputs. VP−428H2 supports HDBaseT tunneling of Ethernet, bidirectional RS−232 and IR signals, as well as PoE to provide power to the HDBaseT receiver. It receives the selected AV signal, up−scales, down scales or bypasses the video, according to the settings selected by the user, and converts it for sending via HDBaseT, together with the tunneled data and PoE.

QUICK FACTS

• HDMI, DP, VGA Inputs
• HDBaseT Tunneling of Ethernet, RS–232 and IR signals, and PoE
• Supports up to 4K@60 4:4:4 on the HDMI and DP inputs
• Supports up to 4K@60 4:2:0 on the HDBaseT output
• Upscales and downscales to / from all resolutions
