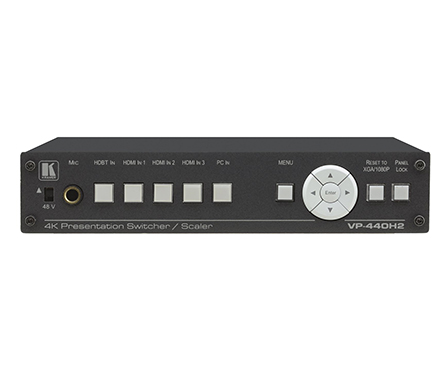

VP-440H2

Compact 5–Input 4K60 4:4:4 Presentation Switcher/Scaler with HDBaseT & HDMI Simultaneous Outputs

VP−440H2 is a high−performance 4K@60Hz (4:4:4) presentation scaler/switcher with one HDBaseT/POE, three HDMI and one computer graphics (VGA) inputs.

The unit scales the video, embeds the audio and outputs the signal to an HDMI and an HDBaseT output simultaneously. The unit includes analog and embedded audio inputs and outputs.

QUICK FACTS

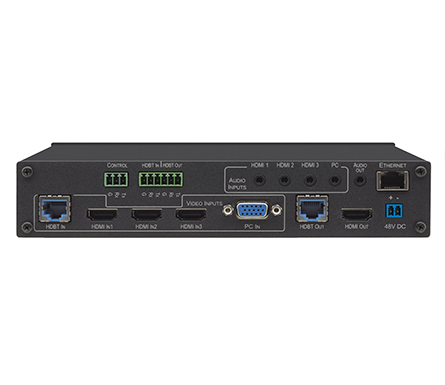

• HDBaseT/PoE, HDMI, VGA Inputs
• Microphone Input, Audio Embedding/De–embedding and Audio DSP
• Auto–Input Switching
• Resolution — Up to 4K@60Hz (4:4:4)
• Control — Ethernet with built–in Web pages, On–Screen Display, RS–232
• Size — Desktop — Mount 2 units side–by–side in a 1U rack space with the
  optional RK–1 adapter.
• Audio — U/E
