VP-444 scaler/switcher for HDMI and computer graphics signals...

KEY FEATURES

• Kramer’s PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high–quality scaling technology. High–quality 3:2 and 2:2 pull down de–interlacing and full up and down scaling of all video input signals.
• HDTV Compatible.
• HDCP Compliant.
• Video Inputs — 10 HDMI & 2 computer graphics video on 15–pin HD connectors.
• Scaled Outputs — 2 HDMI.
• 22 Output Resolutions — Up to WUXGA/1080p.
• 2 Microphone Inputs — For mixing, switching or talk–over (with 48V phantom selection).
• Auto Input Scanning and Switching.
• Companion AFV (Audio–Follow–Video) — Stereo audio for every input (on terminal blocks).
• Audio Inputs — 12 unbalanced stereo on terminal blocks & embedded audio for HDMI inputs, each with individual level controls.
• Audio Outputs — 1 S/PDIF on an RCA connector, 1 balanced stereo audio on a terminal block, embedded audio on the HDMI outputs.
• Multiple Aspect Ratio Selections — Full, overscan, underscan, letterbox & panscan.
• Audio DSP — Powerful digital audio signal processing, including audio equalization, mixing, delay, etc.
• Built–in ProcAmp — Color, hue, sharpness, noise, contrast & brightness.
• Color Sampling — Supports 4:4:4 (RGB and YUV) as well as 4:4:2 (YUV) color sampling.
• Constant Output Sync — No disruption on the output while switching between inputs and when no video is detected.
• Front Panel Control — Audio mute & freeze frame.
• Built–in Web Pages.
• Non–Volatile Memory — Saves final settings.
• Flexible Control Options — Front panel, IR remote with OSD (on–screen display), Ethernet with built–in Web pages & RS–232.
• Worldwide Power Supply — 100–240V AC.

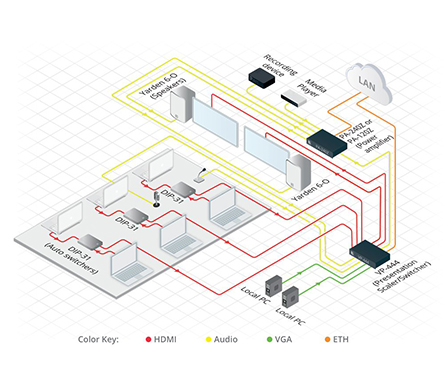

APPLICATIONS

Projection systems in :

• Conference rooms,
• Boardrooms,
• Classrooms,
• Hotels
• Churches and
• Home theater up–scaling
