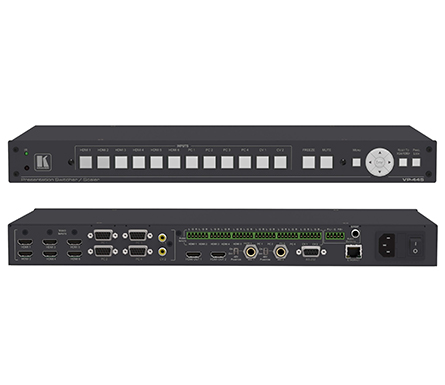

VP-445 12–Input Presentation Switcher/Scaler

KEY FEATURES

• Max. Resolutions — Up to UXGA/1080p.
• HDTV Compatibility.
• PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high–quality scaling technology. High–quality 3:2 and 2:2 pull–down de–interlacing and full up — and down–scaling of all video input signals.

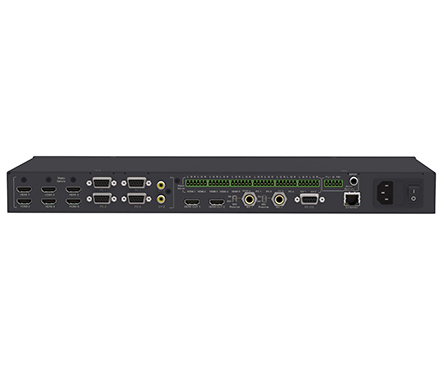

• 12 Video Inputs — 6 HDMI on HDMI connectors, 4 computer graphics video on 15–pin HD connectors and 2 composite video on RCA connectors.
• Two HDMI Scaled Outputs (Mirrored).
• 2 Microphone Inputs — For mixing, switching or talk–over.
• Companion AFV (Audio–Follow–Video) — Stereo audio for every input (on terminal blocks).
• Audio Inputs — 12 unbalanced stereo inputs on terminal blocks, embedded audio for the HDMI inputs, each with individual level controls.
• Audio Outputs — 1 S/PDIF on an RCA connector, one balanced stereo audio on a terminal block and embedded audio on the HDMI outputs.
• Powerful Audio Features — Via DSP technology including audio equalization, mixing, delay and so on.
• Multiple Aspect Ratio Selections — Full, best fit, over scan, under scan, letter box and pan scan.
• Built–in ProcAmp — Color, hue, sharpness, noise, contrast and brightness.
• Color Sampling Support — 4:4:4 (RGB and YUV) and 4:4:2 (YUV).
• Constant Output Sync — No disruption on the output while switching between inputs and when no video is detected.

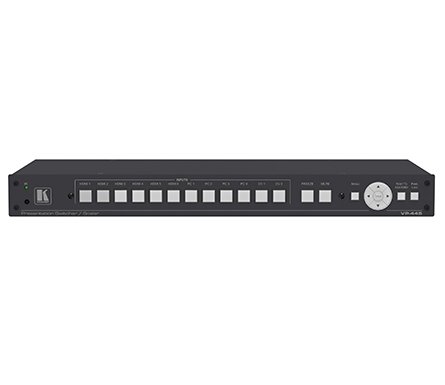

• Front Panel Control — Audio mute and freeze frame.
• Front Panel Lockout.
• Non–Volatile Memory — Saves final settings.
• Various Control Options — Front panel buttons, RS–232, IR remote, OSD, Ethernet Web pages, Ethernet using UDP.
• Universal Power Supply — 100–240V AC.

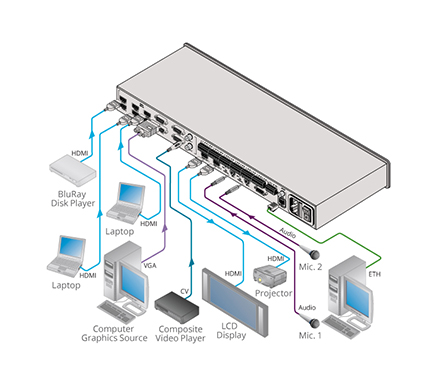

APPLICATIONS

Projection systems in:

• Conference rooms,
• Boardrooms, Hotels,
• Churches and
• Home theater up–scaling
