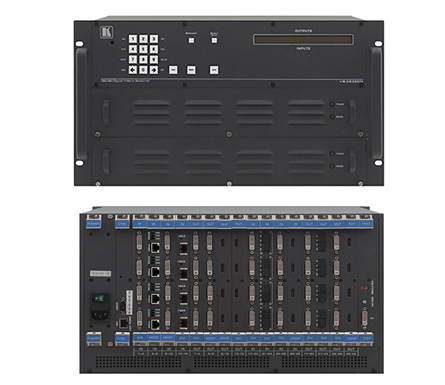

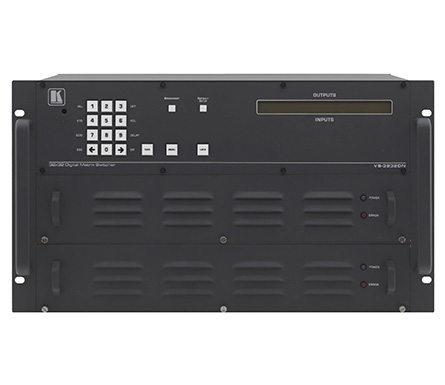

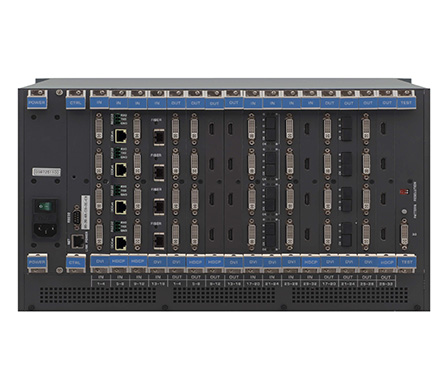

VS-3232DN Modular Multi–Format Digital Matrix Switcher

4x4 to 32x32 Modular Multi–Format Digital Matrix Switcher

VS−3232DN is a high−performance 4x4 to 32x32 modular matrix switcher chassis for AV signals. The unit is a multi−format digital switcher, populated from 4x4 to 32x32 in increments of four inputs and/or four outputs. The chassis includes optional dual, redundant power supplies, a control module and a test module that can monitor and test any input and output in the matrix. VS−3232DN supports a wide variety of input and output cards for different AV signals.

QUICK FACTS

• Max. Data Rate — 10.2Gbps (3.4Gbps per graphics channel)
• Mix Input/Output Modules
• Local DVI Monitor Output
• Optional Redundant Power Supply
• Control — RS–232, Ethernet & IR
