4x4 to 32x32 Modular 4K60 4:2:0 Multi–Format Managed
Digital Matrix Switcher

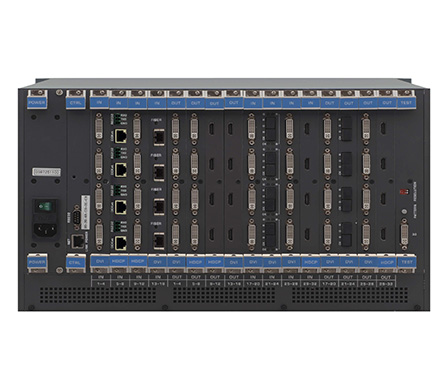

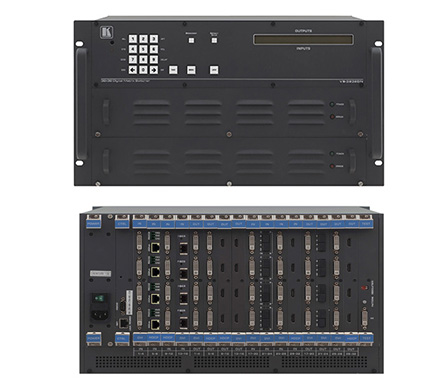

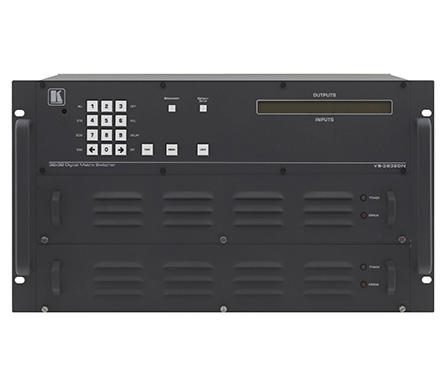

VS−3232DN−EM is a high−performance 4x4 to 32x32 4K@60Hz (4:2:0) modular matrix switcher chassis for AV signals.

The unit is a multi−format digital switcher, populated from 4x4 to 32x32 in increments of four inputs and/or four outputs.

The chassis includes optional dual, redundant power supplies, a control module and a test module that can monitor and
test any input and output in the matrix. VS−3232DN−EM supports a wide variety of input and output cards for different AV signals.


  • Max. Data Rate — 10.2Gbps (3.4Gbps per graphics channel)
  • Mix Input/Output Modules
  • Local DVI Monitor Output
  • Optional Redundant Power Supply

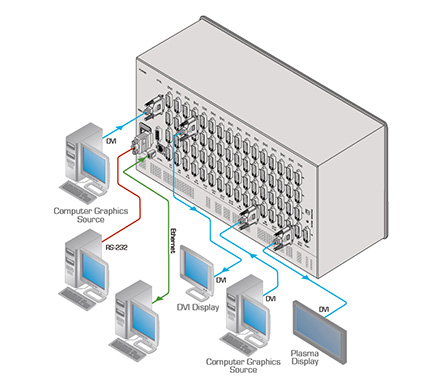

  • Control — RS–232, Ethernet, IR & USB
  • Size — Standard 19" (6U). Rack "ears" included.
