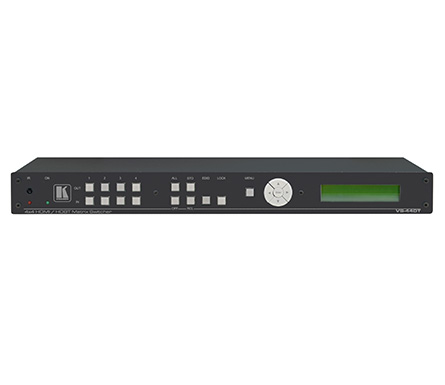

VS-44DT HDMI/HDBaseT Extended–Reach PoE Matrix Switcher

4x4 4K60 4:2:0 HDMI/HDBaseT Extended–Reach PoE Matrix Switcher

VS−44DT is a 4x4 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher that transmits video, audio, Ethernet, RS−232 and IR signals over extended distances.

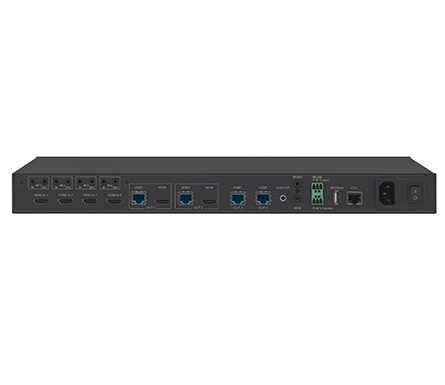

The unit accepts up to four HDMI and four IR inputs as well as Ethernet and RS−232 network and control. The inputs can be routed to any or all of the four HDBaseT outputs, the first two of which also have simultaneous HDMI outputs.

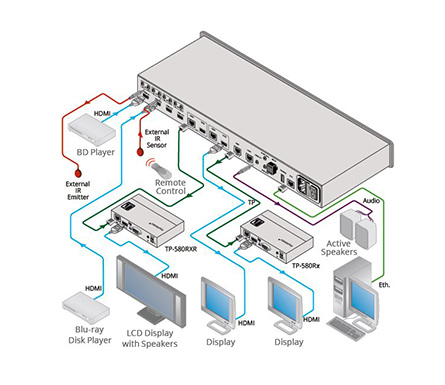

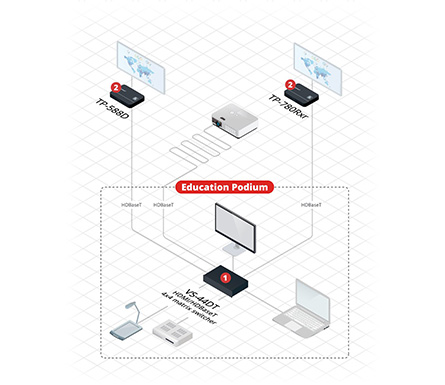

VS−44DT connects to compatible HDBaseT receivers such as, TP−780RXR, TP−580RXR and TP−588D. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.

QUICK FACTS

• 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher
• Resolutions up to 4K@60Hz (4:2:0)
