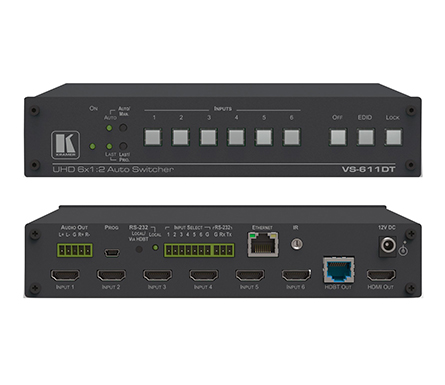

VS-611DT HDMI Auto Switcher and PoE Provider over HDBaseT

6x1:2 4K60 4:2:0 HDMI Auto Switcher and PoE Provider over HDBaseT

VS−611DT is a high−performance automatic switcher for HDMI video signals with resolution up to 4K@60Hz (4:2:0). With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher−priority video signal is introduced. The output signal is distributed to HDBaseT and HDMI 4K@60Hz (4:2:0) outputs.

QUICK FACTS

• Resolution up to 4K@60Hz (4:2:0)
• POE source for HDBaseT receivers
• Supports extended range of HDBaseT out (100m @4K)
• RS–232, IR, Ethernet control: Local and over HDBaseT
• Max. data rate of 8.91Gbps
• Selectable switching — manual or fast auto switching
• Auto power off when no HDMI input
