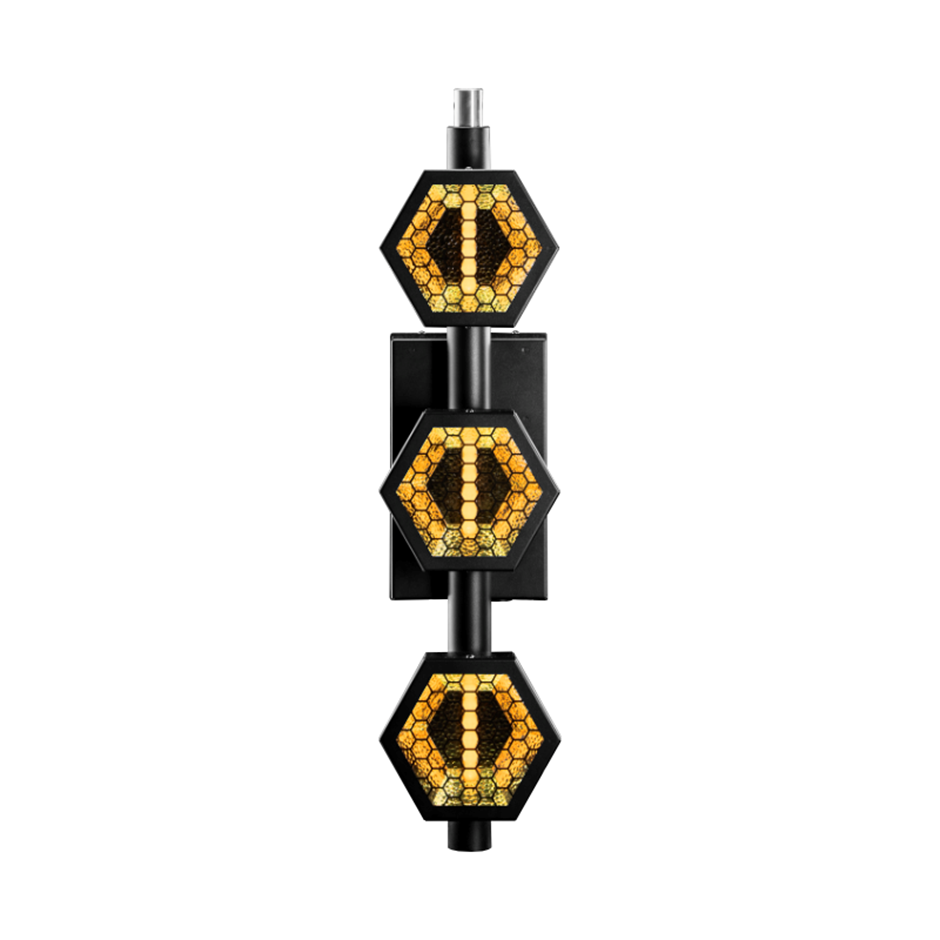

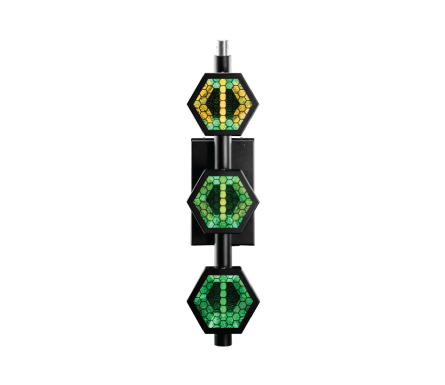

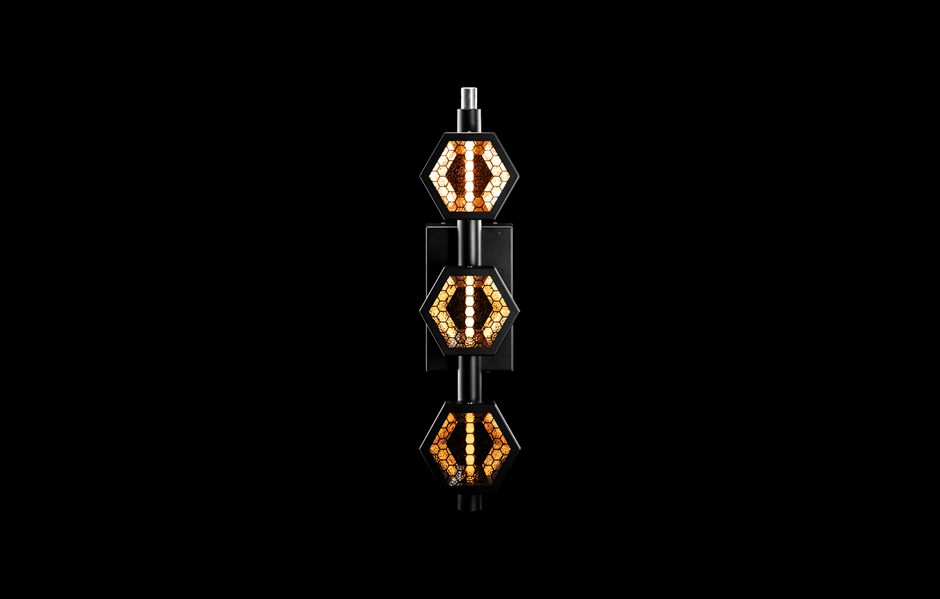

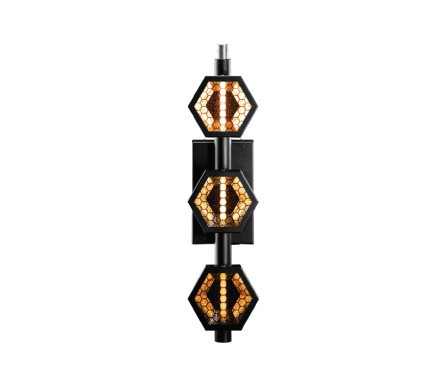

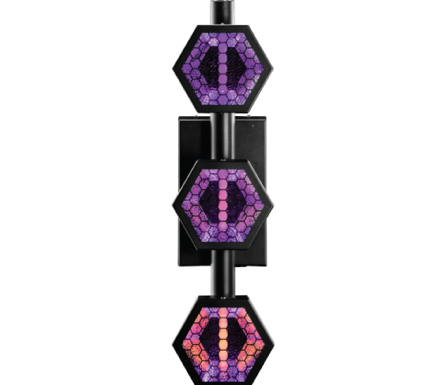

EVO ELEMENT™ True Tungsten haloLED™ Emulation and RGBW Glow

Dimensions

866 x 205 x 189mm (34.09 x 8.07 x 7.44in)

Weight

5,2kg (11,46lbs)

Rigging

- 2 x 12 mm (1/2 in) holes for clamp on back
- base (not included)
- hanging adaptor (included) with 12 mm (1/2 in) hole for clamp

Mounting position

Any

Input voltage

100-240V 50Hz/60Hz

Power consumption

max 240W

Power connector

PowerCon TRUE1 power through

Control connector

- 5 PIN XLR (both: in & out)

Light sources

- 3 x haloLED™ (3x60W)
- 3 x RGBW glow (3x12W)

Color temperature

- 1600-3200K
- RGBW

CRI

>90

Optics

- High reflective hammered reflector
- Opal diffuser

Control features

- 6 DMX modes (9-39 DMX channels)
- RDM
- macros
- W-DMX (optional module)

User interface

- High-contrast LCD display
- Highlighted buttons

Warranty

24 months

IP rating

IP20

What's in the box

- Fixture
- 2m power cord (PowerCon TRUE 1<-> no plug)
- hanging adapter (also for tripod)
- User manual

P2 EVO™ compatibility

- Height: 2x EVO ELEMENT™ = 1x P2 EVO™
- the same pixels' sizes
- the same light sources
- the same accessories

Additional accessories

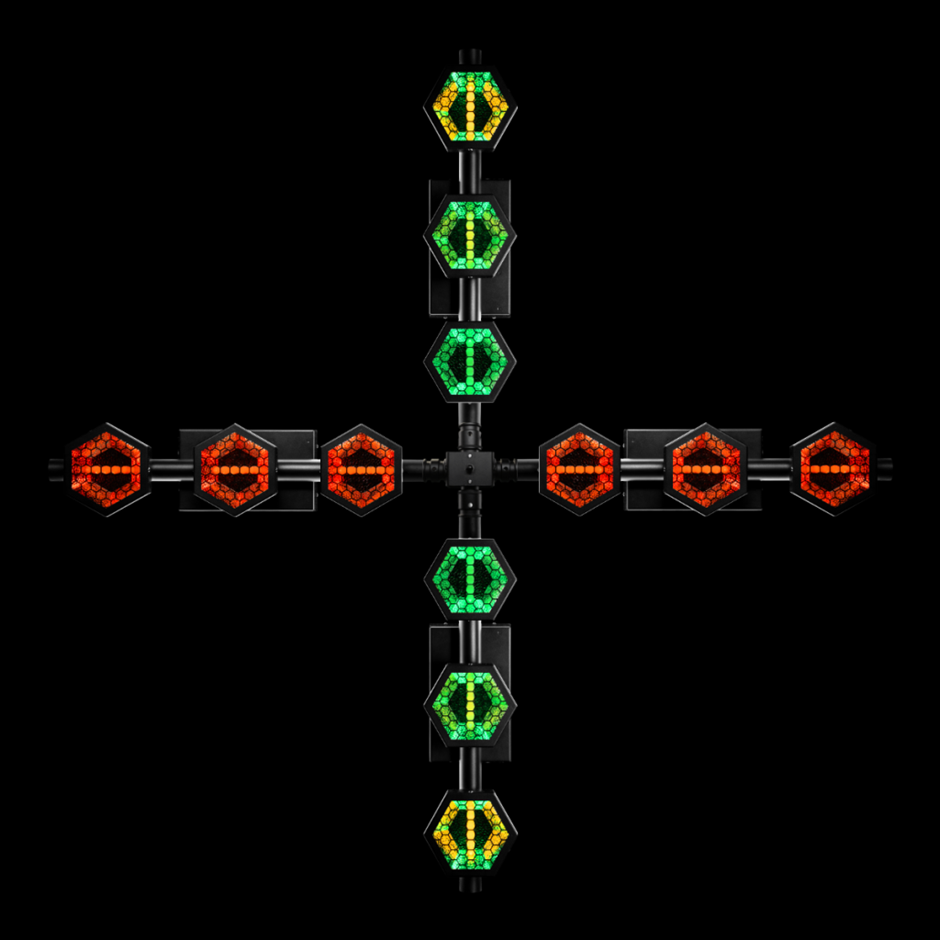

- E-CONN™ (4-way connector. Each 30° adjustable arms)
- P2 EVO base
- P2 EVO height adapter
- WDMX module
- male-male connector
- flight case
