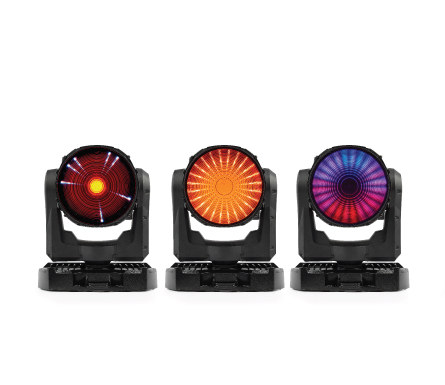

Martin MAC One: Creative BeamWash Moving Head with Fresnel Lens

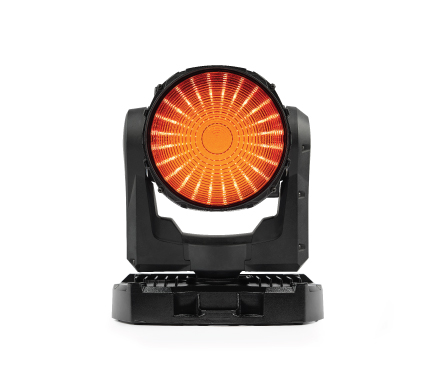

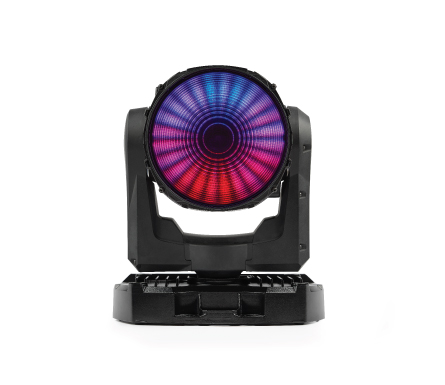

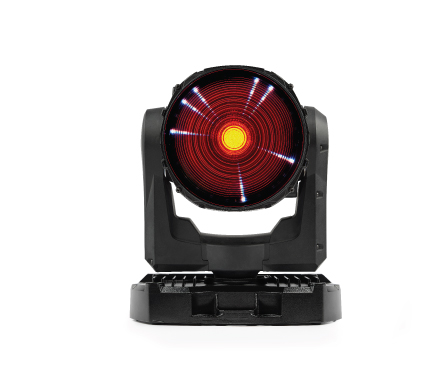

Setting a new standard for compact moving heads, MAC One is a revolutionary Beam, Wash and Eye-Candy fixture, featuring a captivating Fresnel lens that transforms any stage or event into an extraordinary visual spectacle. Compact, lightweight, and highly versatile, MAC One defines a new compact class of performance lighting.

MAC One excels in three powerful feature areas. First, its narrow, high-intensity beam packs the same punch as larger, heavier fixtures to enable robust and vibrant aerial effects. Next, its stunning Fresnel lens creates a soft wash with a 4 to 27-degree zoom range, delivering seamless transitions and engaging visual effects. Rounding out the robust feature-set is an innovative backlight system with 24 RGB effect LEDs within the lens to guarantee memorable and show-stopping visual experiences.

With an impressive output of 2,400 lm and a narrow beam intensity of 300,000 cd, MAC One's performance is unparalleled in its category. Powered by a custom-developed 120 W RGBL (Red, Green, Blue, Lime) LED engine, it ensures higher light quality (CRI, TM-30, TLCI) than traditional RGBW fixtures, appealing to discerning lighting designers.

MAC One stands out against competing fixtures by delivering an innovative combination of features in an incredibly compact and low-weight form-factor. The fixture is easy to handle and manage, opening up a world of creative possibilities for lighting designers and users. More fixtures can be used in a show without compromising weight or space limitations, resulting in lower transport costs and a significant return on investment for rental companies.

For additional versatility, MAC One can also be used with the interlocking accessory system originally created for Martin’s VDO Atomic products. Martin fourbar and matrix accessories can also be used to further extend its design potential and ease large quantity deployment. MAC One can be driven with DMX, Art-Net, sACN, and Martin P3 control systems for seamless integration into any lighting setup.

Whether you are a lighting designer, rental company, or event organizer, MAC One is the answer for creating big looks with many fixtures, utilizing a compact fixture for tight spaces or enthralling the stage with captivating eye-candy effects. Transcend expectations, empower creative expression and revolutionize the stage with MAC One.

Martin MAC One \| Global Launch Event (Watch Video)

A PUNCH ABOVE + WELL DEFINED INTENSITY
With 2,400 lm output from a from factor just above 4kg, MAC One features great output to size ratio, delivering impressive light output from a compact and lightweight fixture. Additionally, MAC One’s narrow beam intensity of 300,000 cd ensures a well-defined, tight, fast, and responsive mid-air beam

KEY FEATURES

SPECIFICATIONS

PHYSICAL

Width (across yoke): 226 mm (8.90 in.)
Width (base): 254 mm (10.00 in.)
Height (head straight up): 336 mm (13.23 in.)
Height (maximum): 349 mm (13.74 in.)
Depth (head): 220 mm (8.66 in.)
Depth (base): 177 mm (6.97 in.)
Minimum center-to-center distance in side-by-side installation: 300 mm (11.81 in.)
Weight: 4.40 kg (9.70 lbs.)

DYNAMIC EFFECTS

Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Beam Dimming options: Choice of four dimming curves
Beam Color Mixing: RGB, independently variable 0 - 100%
Beam Color Temperature Control: Variable 1,000 – 12,850 K
Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
Zoom: Motorized with 1:5 zoom ratio, including zoom pulse effect
Pan: Motorized 540°
Tilt: Motorized 240°
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Backlight Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
Backlight Dimming options: Choice of four dimming curves
Backlight Color Mixing: RGB, independently variable 0 - 100%
Backlight Color Temperature Control: Variable 1,000 – 12,850 K
Backlight Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Backlight Virtual Color wheel: 48 color presets, continuous rotation & random color
Backlight PixelMapping: Individual RGB control of each of the 24 Backlight pixels
Backlight P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Two ranges of FX on Beam, Backlight or Combination; independent or synchronized/combined
LED Frequency control: Variable LED PWM control

CONTROL AND PROGRAMMING

Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol Detection: Automatic
DMX Modes: Compact, Basic, Ludicrous & Compact Direct
DMX Channels: 20, 36, 108 & 20
16-bit Controllable Parameters: Beam & Backlight Dimming, Beam Color Mixing, Zoom, Pan and Tilt
Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
Local User Interface: Backlit LCD Display with battery-powered operation
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Firmware Update: via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller

OPTICS

Front Lens Diameter: 150 mm (5.91 in.)
Zoom Range: 1:5
Full Zoom Range at Half Peak (Beam Angle): 4.0° - 21.0°
Full Zoom Range at Tenth Peak (Field Angle): 6.0° - 27.0°
Beam Light Source: 1 x 120 W RGBL LED
Backlight Light Source: 24 x 0.25 W RGB LED
Max. Total Beam LED Engine Power: 120 W
Max. Total Backlight LED Engine Power: 6 W
Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions

PHOTOMETRIC DATA

Light Engine Luminous Output: 5,680 lumens
Fixture Luminous Output Wide: 2,400 lumens
Fixture Luminous Output Narrow: 1,800 lumens
Peak Luminous Intensity Narrow: 300,000 cd
CCT: Variable 1,000 K – 12,850 K (+/- 200 K)
CRI (Color Rendering Index) high output mode: ≥ 77
CRI (Color Rendering Index) high quality mode: ≥ 83
CQS (Color Quality Scale) high output mode: ≥ 87
CQS (Color Quality Scale) high quality mode: ≥ 90
TM-30 Rf (IES TM-30-15 Fidelity Index) high output mode: ≥ 81
TM-30 Rf (IES TM-30-15 Fidelity Index) high quality mode: ≥ 84
TM-30 Rg (IES TM-30-15 Gamut Index) high output mode: ≥ 114
TM-30 Rg (IES TM-30-15 Gamut Index) high quality mode: ≥ 110
TLCI (Television Lighting Consistency Index) high output mode: ≥ 70
TLCI (Television Lighting Consistency Index) high quality mode: ≥ 84
Beam LED Refresh Rate: 2,400 Hz with adjustment (+/- 2%) via DMX
Backlight LED Refresh Rate: 1,200 Hz
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration of Beam and Backlight
Color Modes: Extended Color Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient

CONSTRUCTIONHousing: High-impact flame-retardant thermoplasticColor: BlackProtection rating: IP20

INSTALLATION

Mounting options: clamps on fixture, omega on fixture, fourbar or grid mount ring
Mounting points on Fixture: 1 pair of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega bracket and two M12 threaded holes
Mounting points on Fourbar: 1 fixed and 2 repositionable M12 threaded holes
Mounting points on Grid Mount Ring: 6 receivers for VDO Couplers (compatible with VDO Atomic Bold/Dot)
Mounting points on VDO Coupler Header: 2 repositionable M12 threaded holes and 4 receivers for VDO Couplers (compatible with Grid Mount Ring and VDO Atomic Bold/Dot)
Maximum vertical column height in Grid Mount Rings: 6 fixtures
Location: Indoor or outdoor protected from elements
Orientation: Any
Minimum distance to combustible materials: 0.20 m (7.87 in.)
Minimum distance to illuminated surfaces: 1.75 m (68.90 in.)

CONNECTIONSAC mains power in/thru: Neutrik powerCON TRUE1 TOPDMX and RDM data in/thru: Neutrik 5-pin locking XLREthernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON

ELECTRICAL

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 3.5 A
Typical earth-leakage current: 0.05 mA
Power Factor: 0.99 @ 100V , 0.98 @ 120V , 0.94 @ 208V , 0.92 @ 230V , 0.88 @ 240V
Max current draw: 2.0 A @ 100V / 120V, 0.9 A @ 208V / 230V / 240V
Typical current draw: 1.6 A @ 100 V , 1.4 A @ 120 V , 0.9 A @ 208 V , 0.8 A @ 230 V , 0.8 A @ 240 V *
Power Consumption
Maximum: 180 W
Typical: 160 W *
Idle: 24 W *
Hibernation: 9 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

THERMALCooling: Forced air (temperature regulated, low noise, user-definable levels)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Maximum surface temperature, steady state, at 40° C ambient: 55° C (131° F)Total heat dissipation (calculated, +/- 10%): 546 BTU/hr.

ACOUSTIC DATASound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 26.3 dB(A)Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 23.0 dB(A)

ENVIRONMENTALRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantFSC: Certified cardboard inner and outer packagingEfficacy (max output): 15 lm/WLWR*: 545 lm/kg (247 lm/lbs.)

LWR = Lumen-to-Weight Ratio

APPROVALSGlobal CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCMUnited Kingdom: UKCA

INCLUDED ITEMS

Single omega bracket with 1/4 turn fasteners for rigging clamp attachment
SoftLens
Multi-Language Safety and Installation Manual

RELATED ITEMS

VDO Atomic Bold in cardboard: P/N MAR-90357703
VDO Atomic Dot CLD in cardboard: P/N 90357701
VDO Atomic Dot WRM in cardboard: P/N 90357702
Martin Companion Cable (for firmware update over DMX): P/N 91616091
Martin Companion Software (for firmware update over DMX/Ethernet): Free download from www.martin.com

ACCESSORIES

Transport and Storage
Flightcase for 8 x MAC One: P/N MAR-91515058
Additional dual SiP Foam Flightcase Insert for MAC One: P/N MAR-91611862HU

Consumables
CR123A 3-volt lithium battery: P/N 05801011

Spare Parts
Additional MAC One SoftLens: P/N 5137039-00

Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173

Power Linking Cables
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

Power Connectors
Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU

PDE Adapter Cables (for use in matrix with VDO Atomic Bold/Dot)
BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001

Installation Hardware
MAC One Fourbar: P/N MAR-91616127HU
MAC One VDO Grid Mount Ring: P/N MAR-91616128HU
Set of 10 VDO Couplers: P/N MAR-91616129HU
Dual VDO Header: P/N MAR-91616130HU
VDO Atomic Half Coupler: P/N 91610004
VDO Atomic Interlock Adapter: P/N 91610006
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

ORDERING INFORMATIONMAC One in dual SiP (in cardboard box with dual SiP foam flight case insert): P/N MAR-90250205HU (to be ordered in multiples of 2)MAC One in Cardboard (in cardboard box with cardboard inlay): P/N MAR-90250200HUMAC One white in Cardboard (in cardboard box with cardboard inlay): P/N MAR-90250210HU

DOWNLOADS

	Version	Language	Size	Uploaded
SPECIFICATIONS
MAC One - Spec Sheet	A		2.36 MB	Nov 2023
ILLUSTRATIONS
MAC One - 2D Dimensions (PDF)	A		1.37 MB	Nov 2023
MAC One - 2D Dimensions (DWG)	A		3.8 MB	Nov 2023
CAD DRAWINGS
MAC One - 3D Drawings	A		5.18 MB	Nov 2023
COMPLIANCES
Safety Document (SDS) for Batteries	A		117 KB	Nov 2023
